Tension-Controller

Control Methods: PWM(Pulse Width Modulation)

Input Power: Single Phase AC185V-264V，50/60Hz

Output Power: DC 0-24V，4A Max

External Control Signal: 0-10V，co-output 0-24V

Using Condition: -10-60℃，≤85RH

Weight: 1KG

Email:

Email:

Tel:

Tel:

Still deciding? Get samples first, Contact US !

View similar products

Tension-Controller

Description

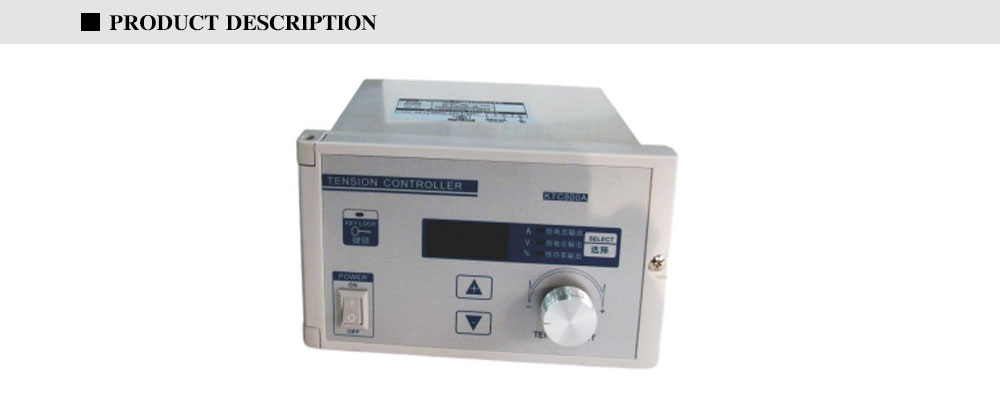

Product Description

A dedicated controller that accurately achieves manual tension control of materials and is compatible with magnetic powder brakes, magnetic powder clutches, voltage regulators and other equipment.

KTC800A is the new version in 202l,which has high performance than old versions.Its usually used for material's tension control manually.This kind of manual tension controller is applicable for Magnetic powder brake,Magnetic powder clutch, Voltage regulator.etc

Specification

Parameter Category	Specific Description
Control Methods	PWM(Pulse Width Modulation)
Input Power	Single Phase AC185V-264V,50/60Hz
Output Power	DC 0-24V，4A Max
Applicable Model	Magnetic clutch, Magnetic brakes,Voltage regulator supplies
External Control Signal	0-10V，co-output 0-24V
Installation Methods	Vertical Installation, Wallhanging Installation, Embedded Installation
Using Condition	-10-60℃，≤85RH
Weight	1KG

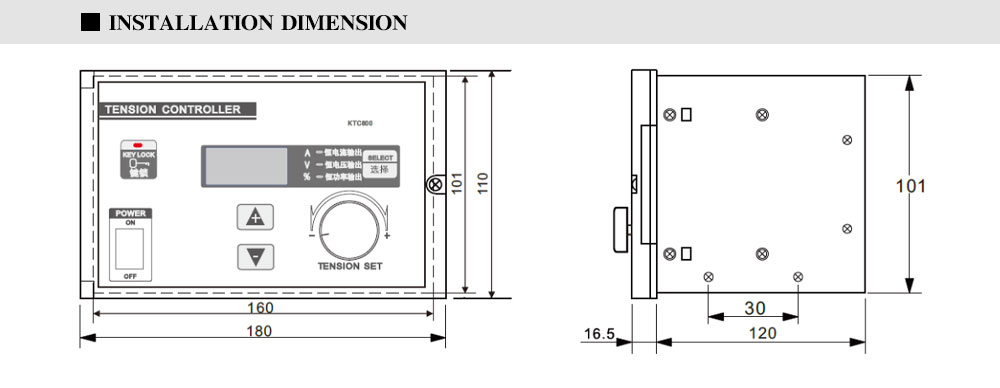

Product Images And Product Chart

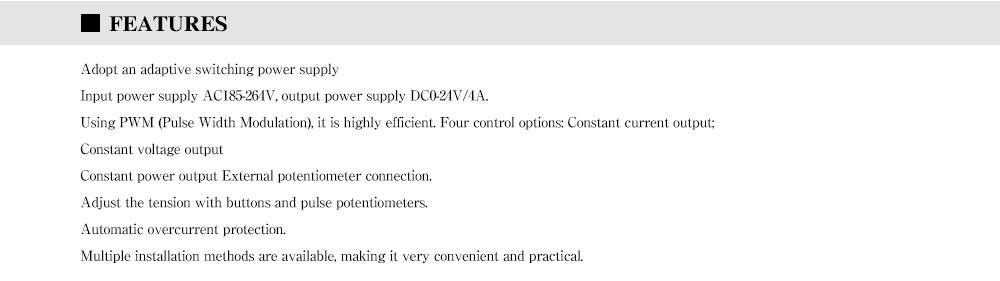

Features Of The Tension Controller

🔘Adopt an adaptive switching power supply

🔘Input power supply AC185-264V,output power supply DC0-24V/4A.Using PW'M (Pulse Width Modulation), it is highly ellicient, four control options: Constant current output;

🔘Constant voltage output

🔘Constant power output External potentiometer connection.

🔘Adjust the tension with buttons and pulse potentiometers.

🔘Automatic overeurrent protection,

🔘Multiple installation methods are available, making it very convenient and practical.
