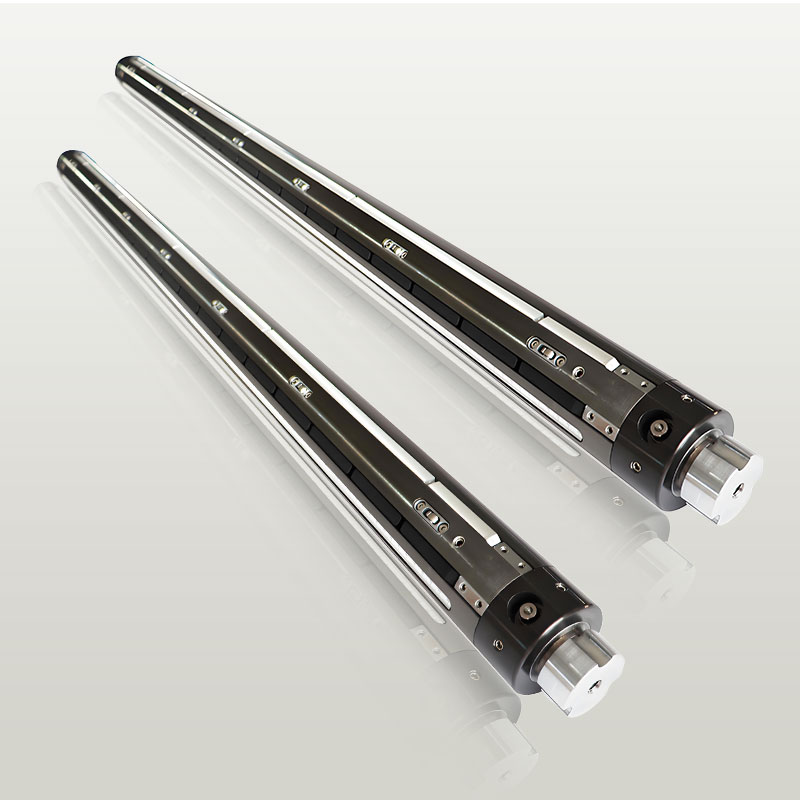

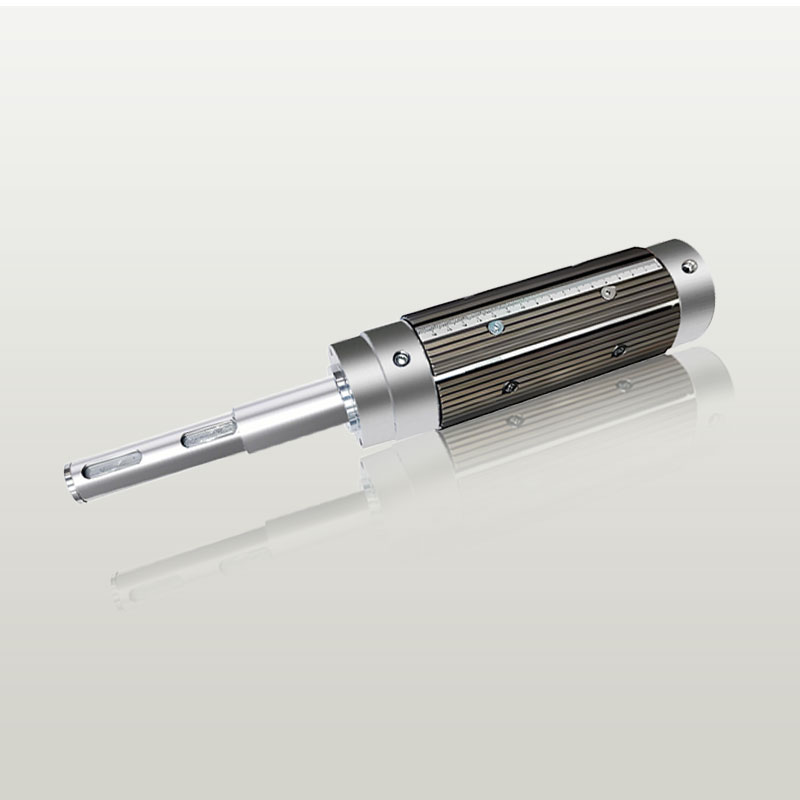

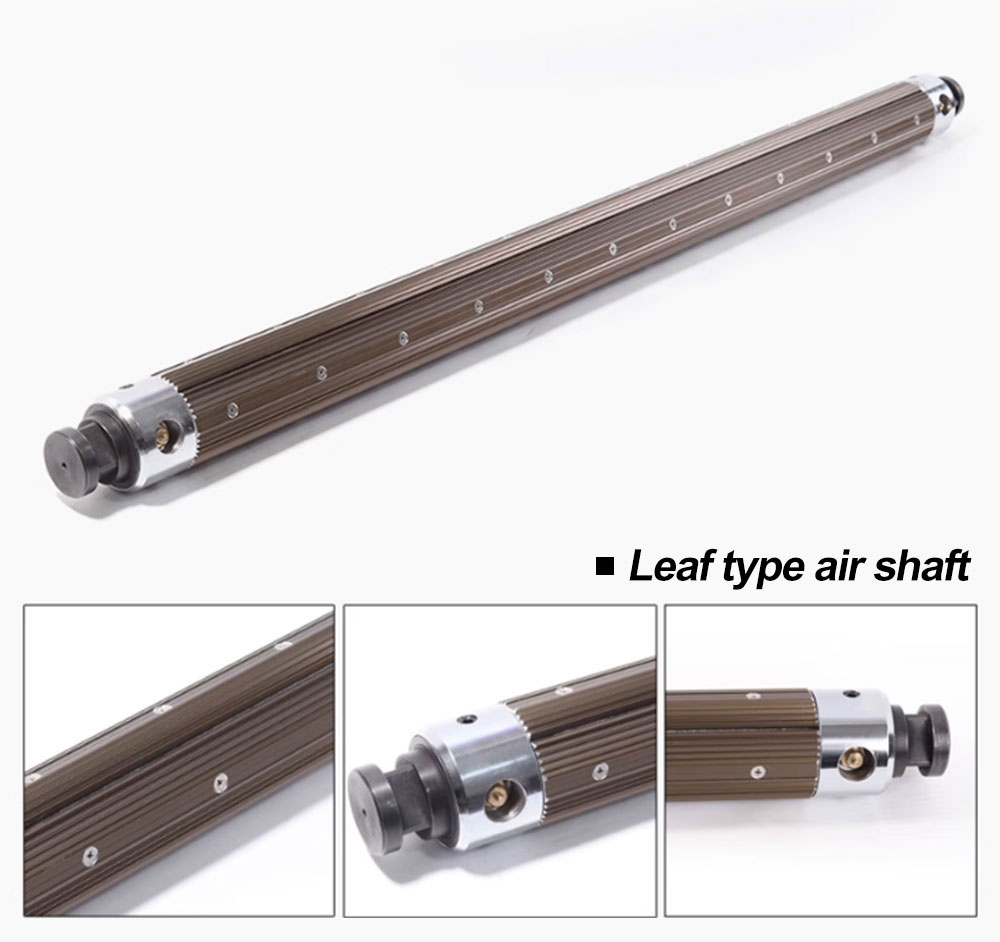

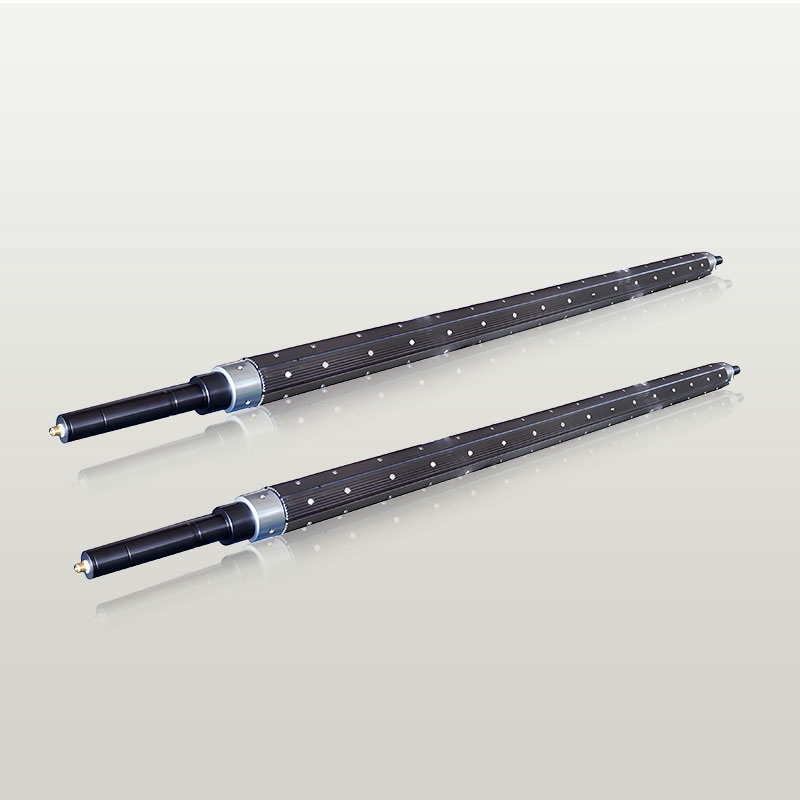

High Precision Air Expansion Shaft
Length: Customized according to customer drawings
Diameter: 1 - 12 inches (24 - 300mm)
Material: Steel/Aluminum
Note: This product can be customized to various special specifications.
Still deciding? Get samples first, Contact US !
- Description
-
Product Description

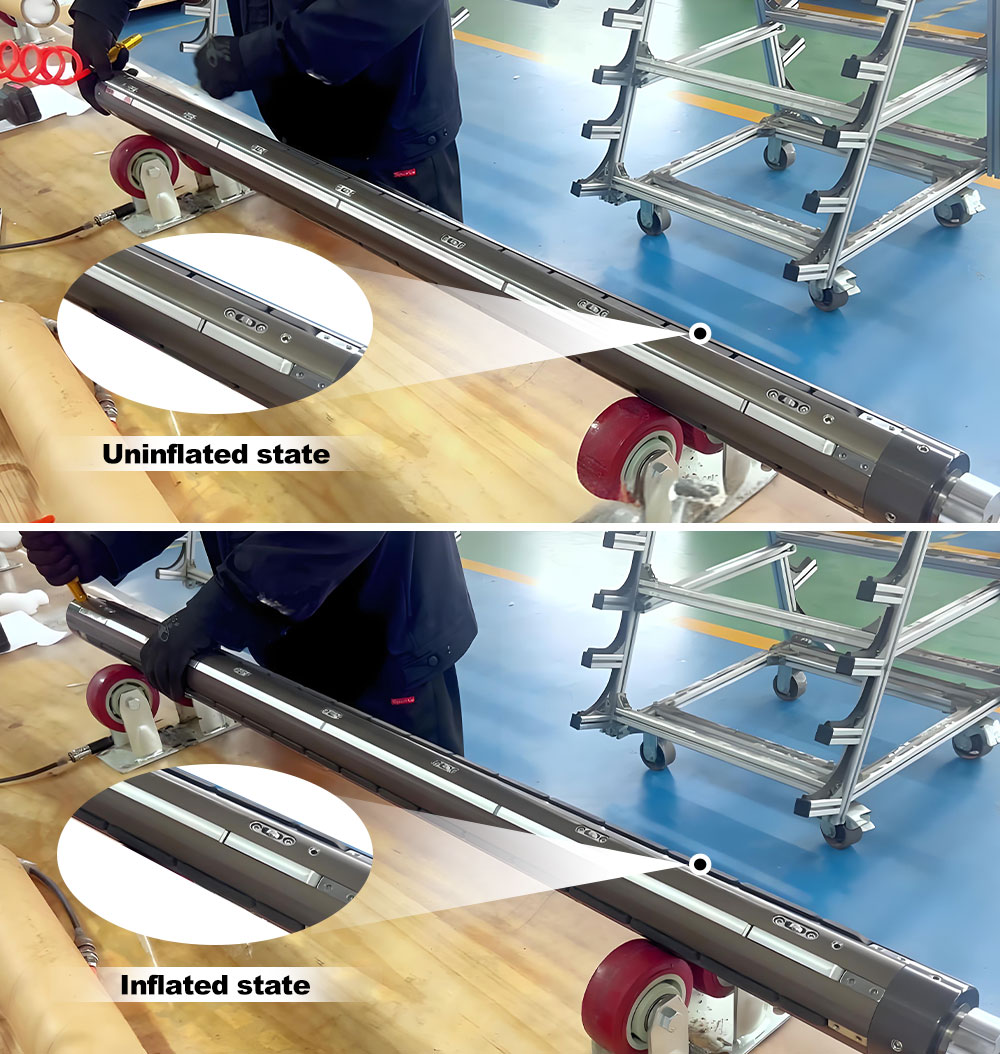

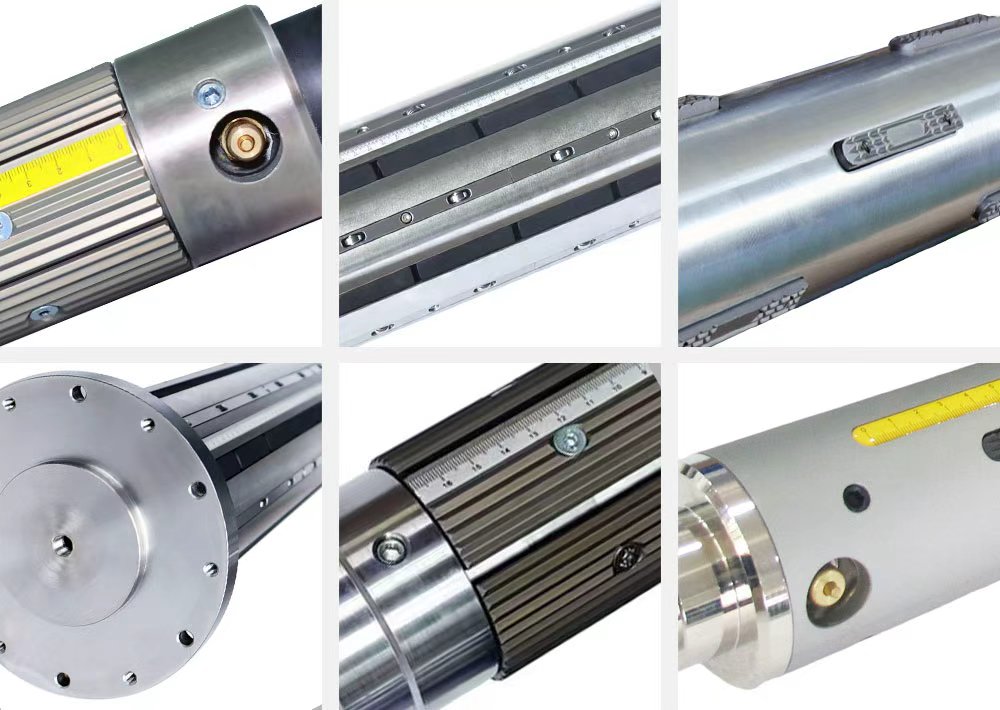

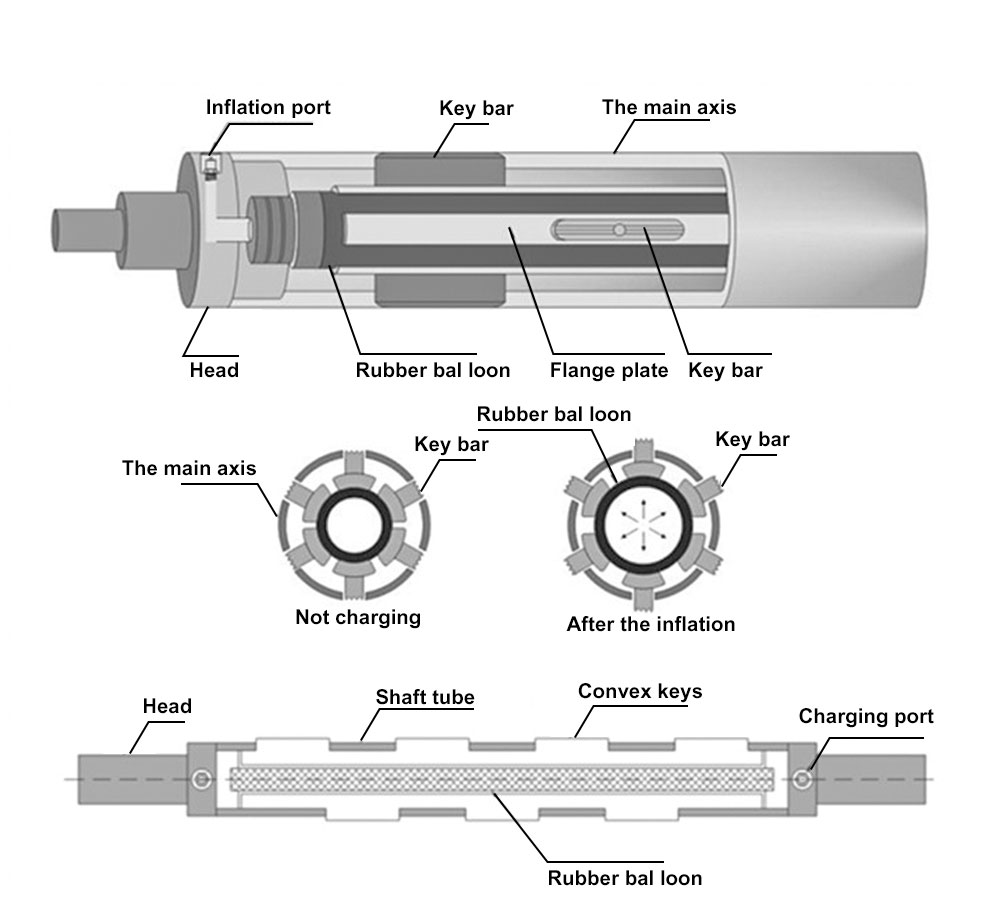

The air expansion shaft is a specially designed winding and unwinding shaft. By inflating the air through the inflation handle into the air nozzle, the key bars or plates on the surface of the shaft will protrude, thereby gripping the inner wall of the material roll (such as the paper tube that matches the air expansion shaft). When it is necessary to release the paper tube for unloading, simply press the air core above the air nozzle to release the air and unload the material.
Specification

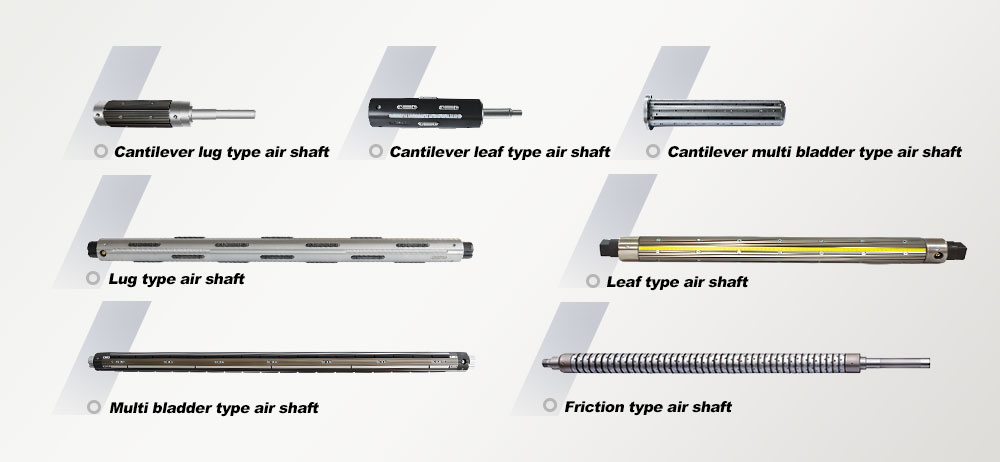

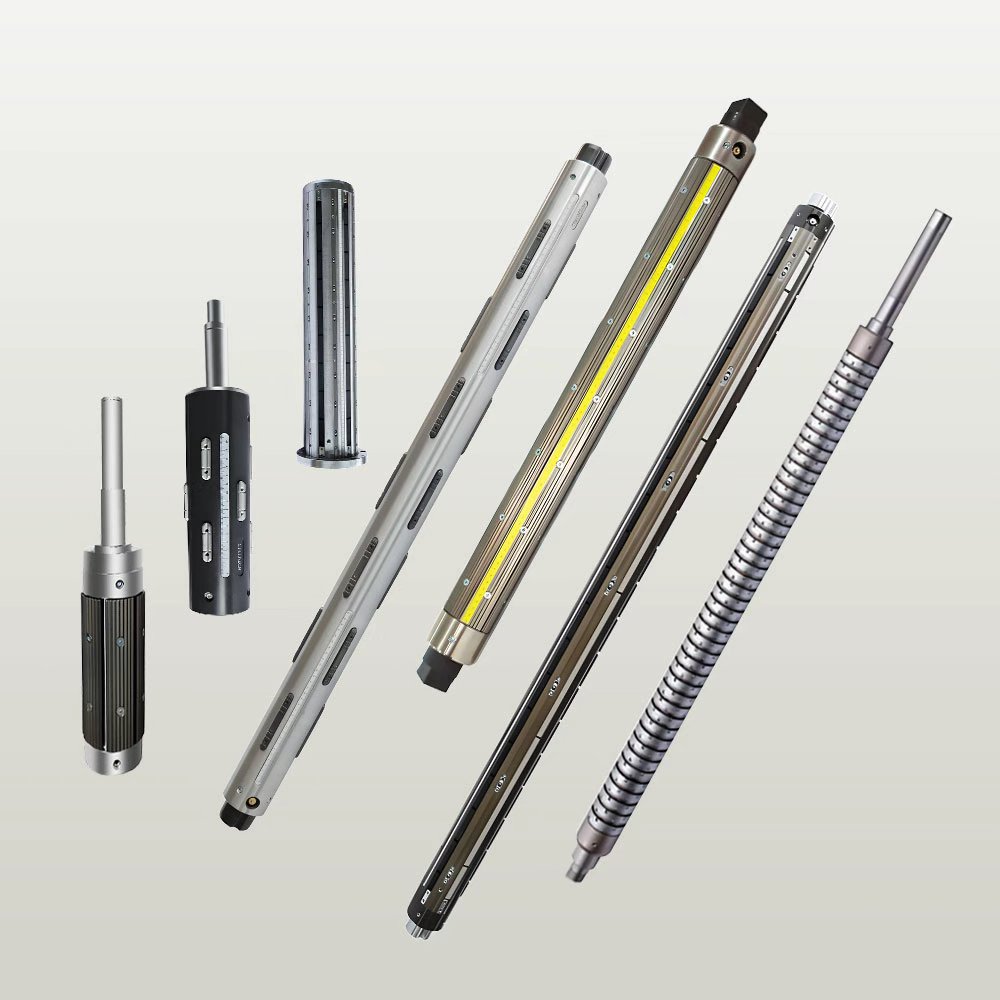

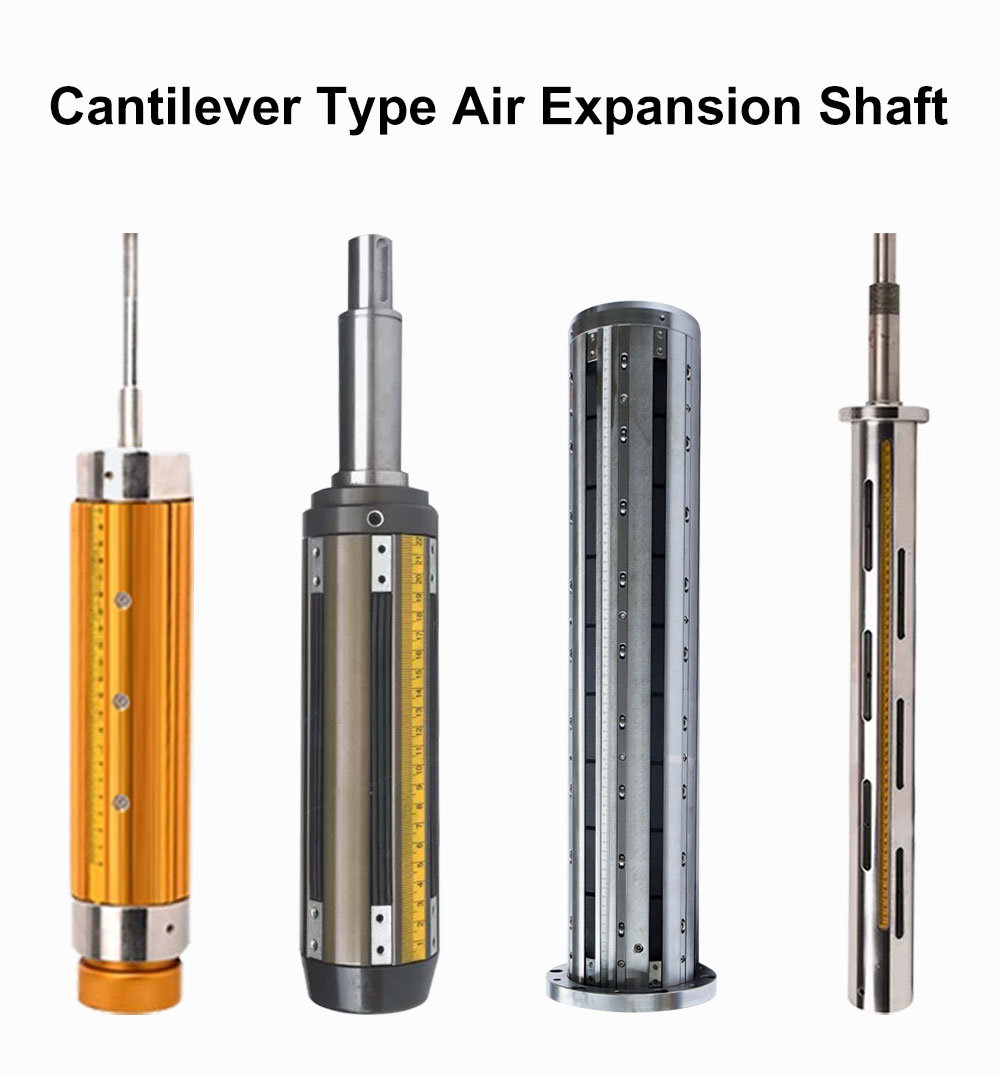

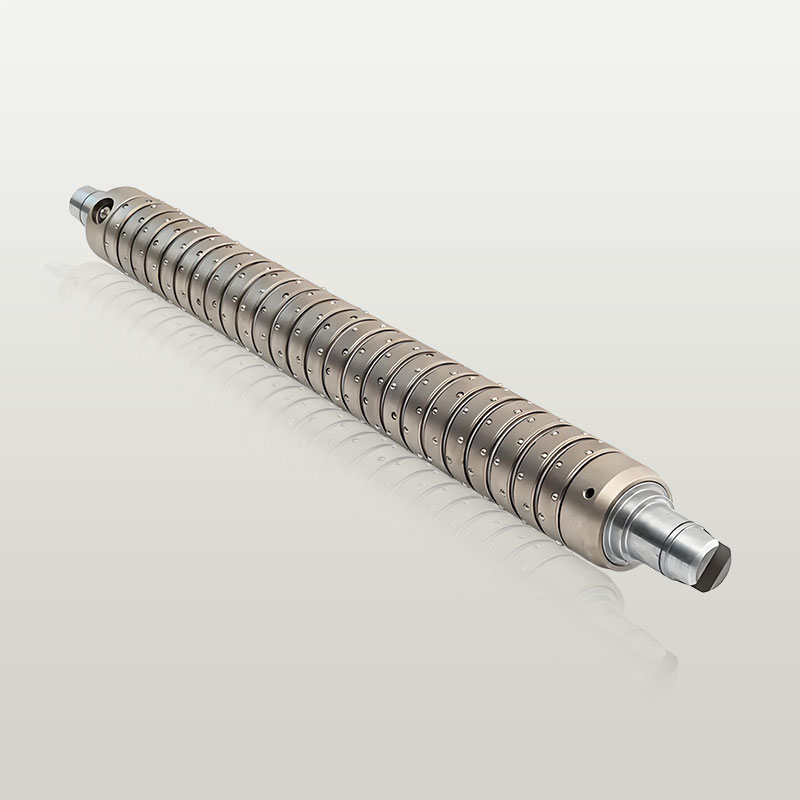

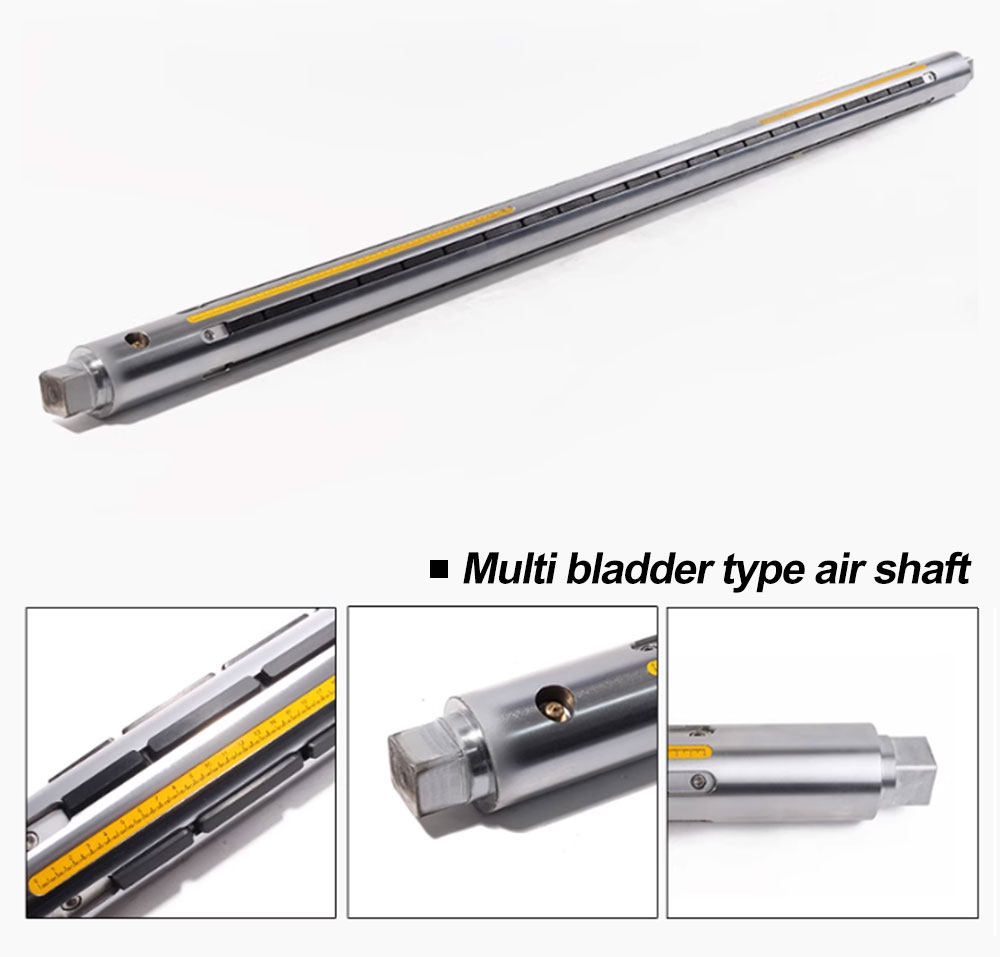

Product Images And Product Chart

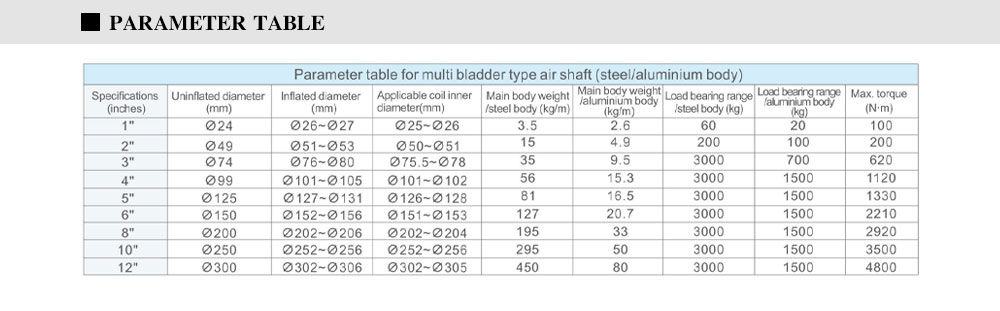

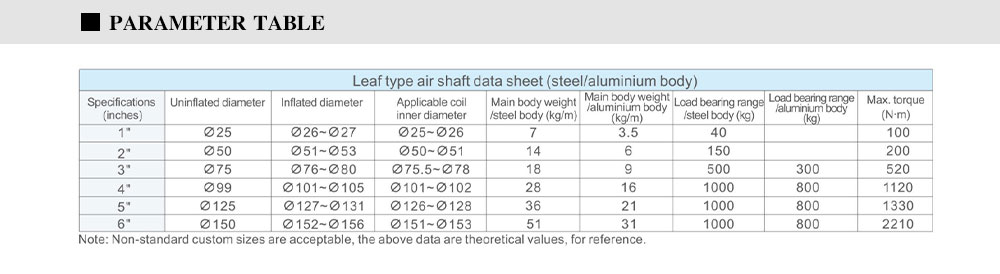

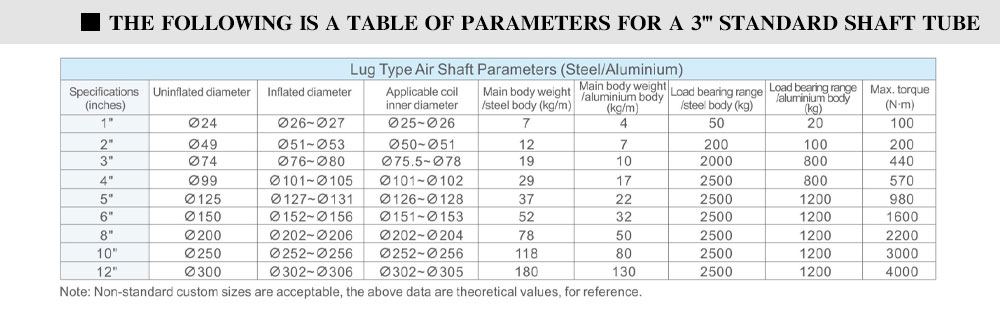

Airshaft Diameter Chart(Unit: mm) Diameter before expanding Diameter after expanding Applicable core inner diameter 1inch 24 28-32 26-30 2inch 49 52-54 50-52 3inch 74 79-82 77-80 4inch 99 103-105 101-103 5inch 125 129-131 127-129 6inch 150 154-158 152-156 8inch 200 205-207 203-205 10inch 250 255-257 253-255 12inch 300 305-307 303-305 Note: Non-standard custom sizes are acceptable, the above data are theoretical values, for reference.

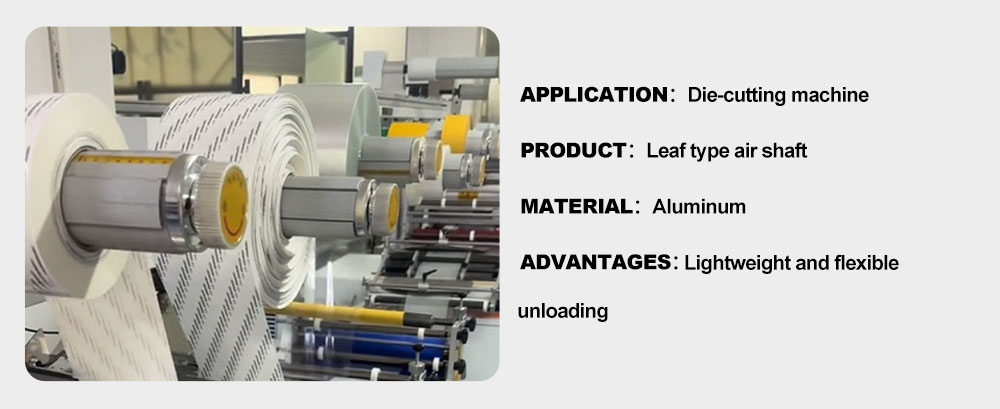

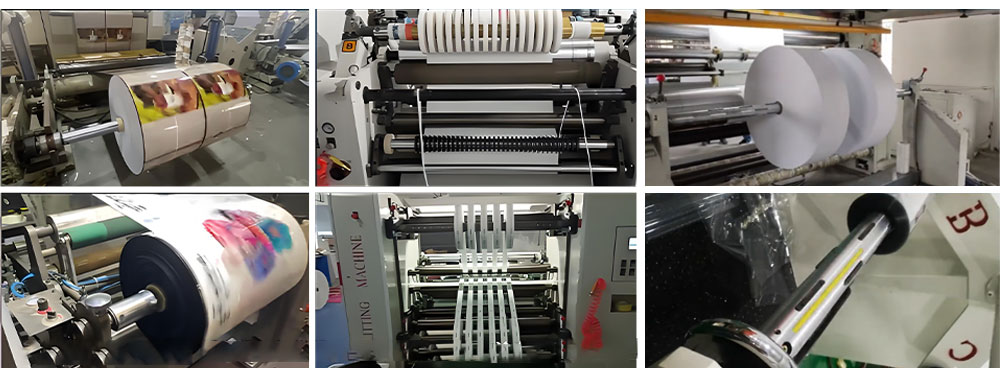

Product Application
Our range of Air Expansion Shafts is widely used in all industries involving web processing and handling:

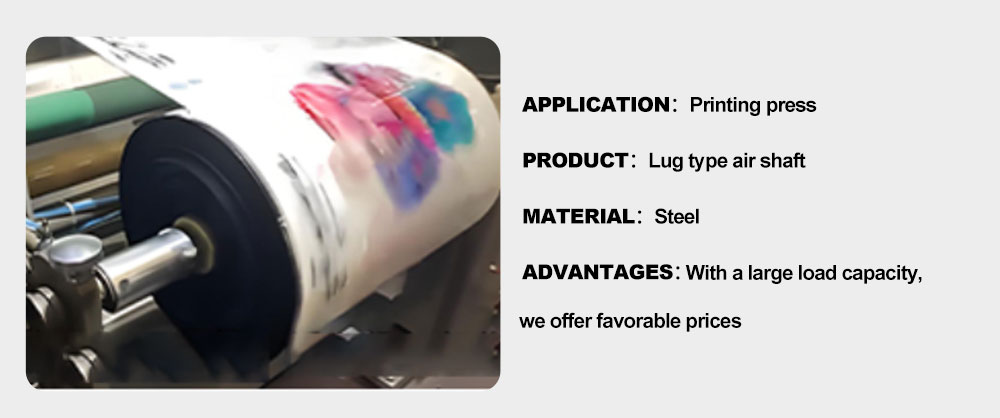

●Printing Industry: Used in the unwind and rewind stations of gravure, flexographic, and offset printing presses.

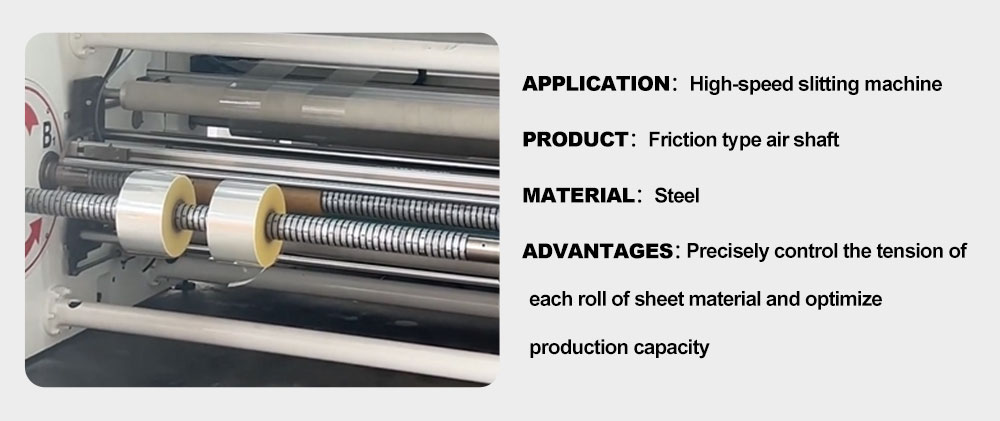

●Packaging Industry: Applied in slitting and rewinding machinery for flexible packaging (e.g., CPP, BOPP films), cardboard, non-wovens, etc.
●Paper Industry: Utilized in large-scale paper rewinding machines, coaters, and slitters.
●Textile Industry: Suitable for dyeing, finishing, and subsequent processing of fabrics, carpets, and non-woven materials.

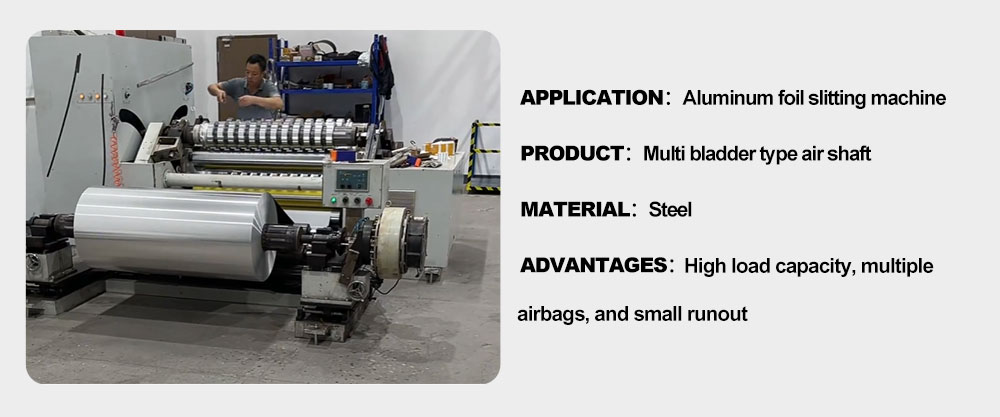

●Metal Processing: Used for precision winding/unwinding of thin metal sheets and foils (e.g., aluminum foil, copper foil).
●Other Web Materials: Leather, plastics, composite materials, etc.
