BTC model pneumatic tooth clutch
This product is standstill or low speed engagement, high-speed rotating. It is used in automatic mechanical arm, tire forming machine, printing machinery, packaging machinery, die-cutting machinery, crusher and etc.
Still deciding? Get samples first, Contact US !
- Description
-
Product Description

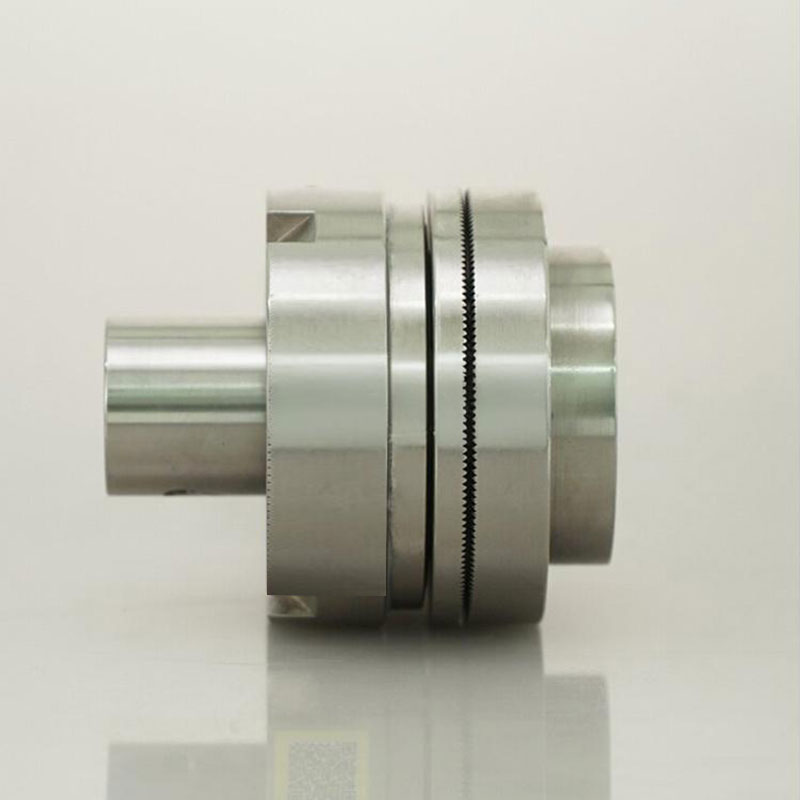

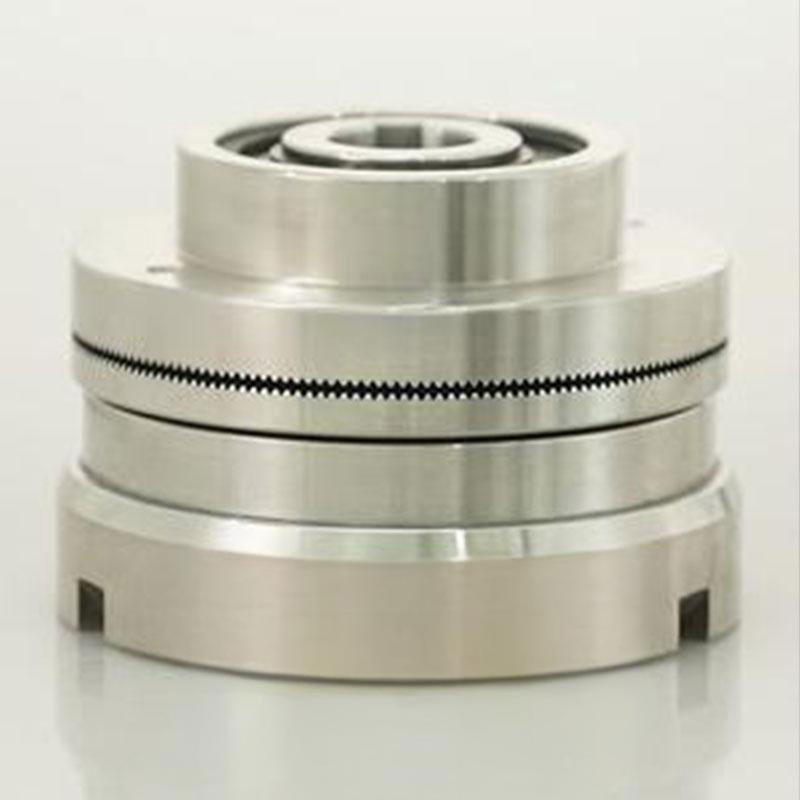

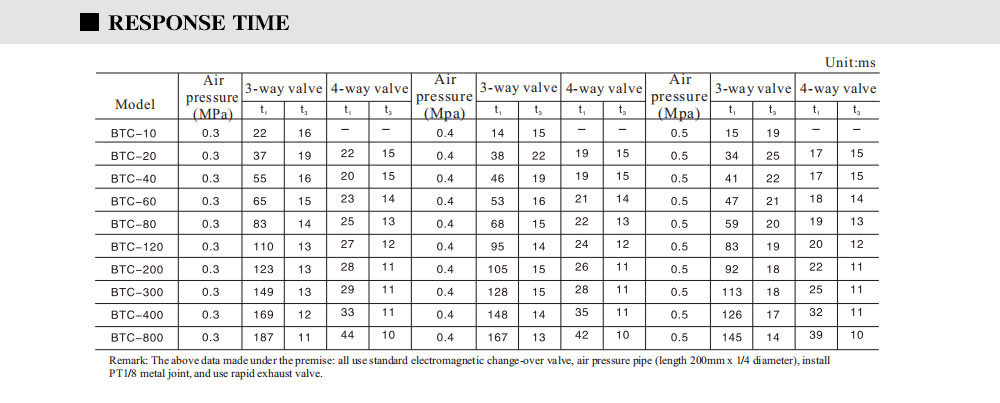

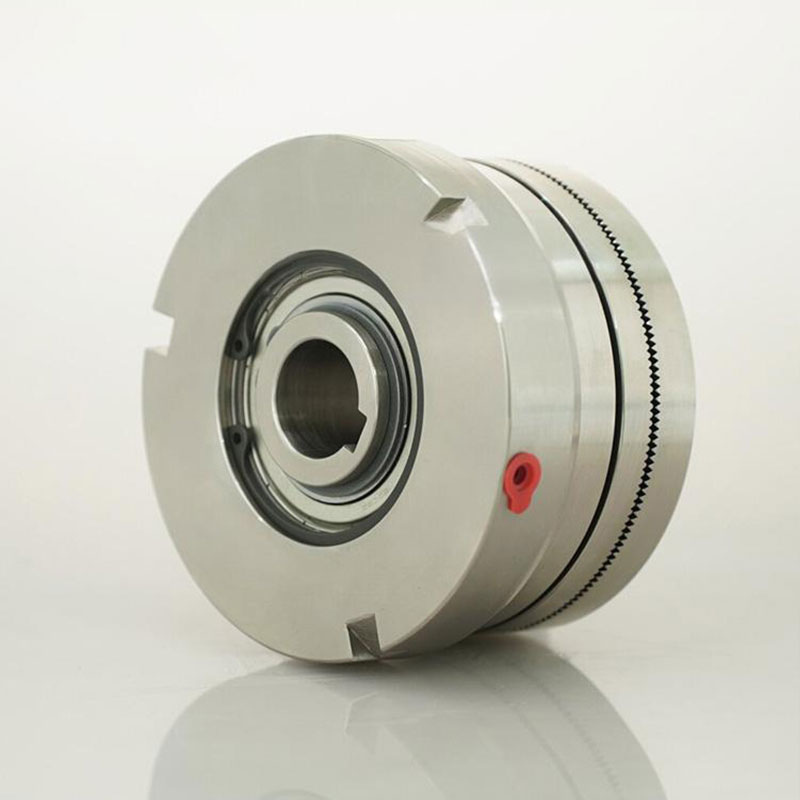

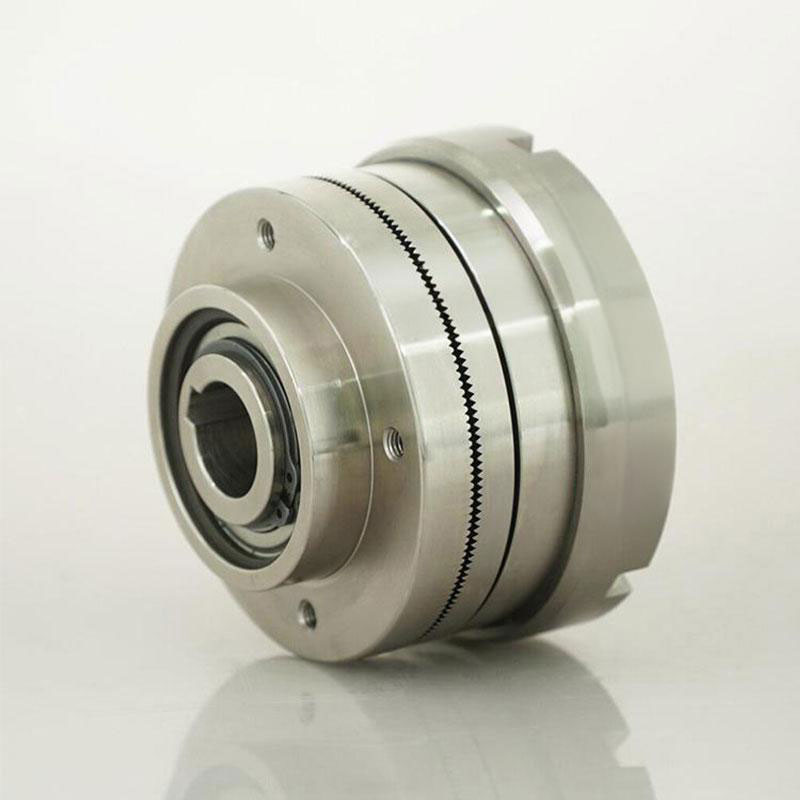

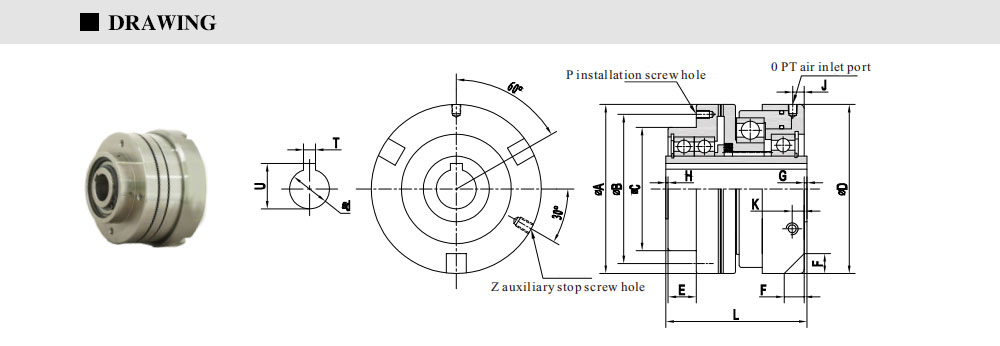

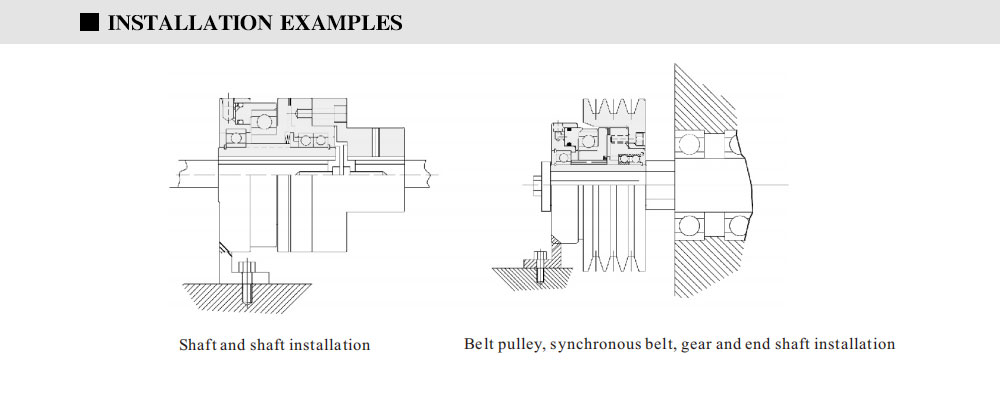

Product Images And Product Chart
This clutch is linked with air pressure, released by return springs. After
supplying air pressure, piston pushes driving tooth plate to slide along the
direction of the axis, driving tooth plate compressed driven tooth plate to
come into an integrated structure, clutch linked. Driving tooth plate and
driven tooth plate are separated by return springs after exhausting air pressure,
clutch released.

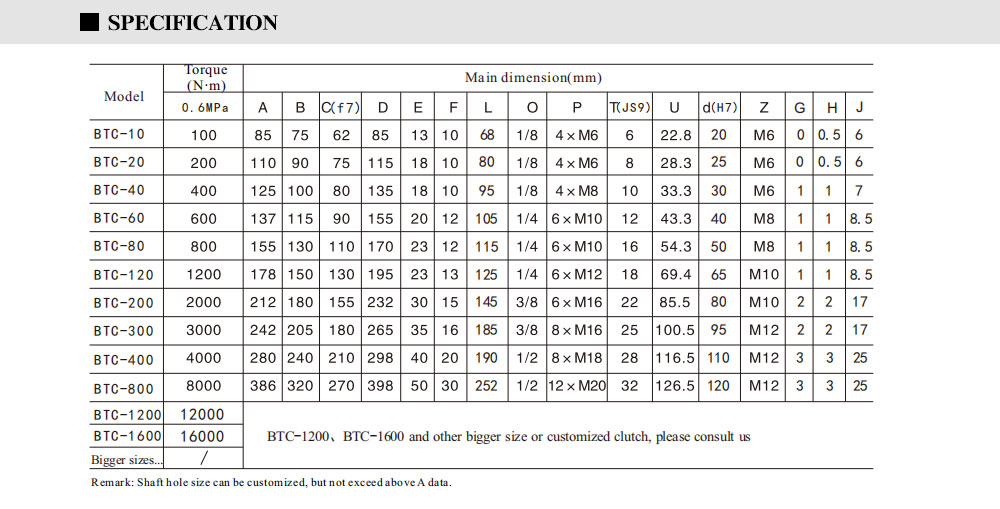

Specification
1.Tooth clutch can transmit power accurately without slippage since each tooth fits exactly
to one another.
2.Suitable for narrow space, it can transmit high torque in compact size(both ends transmitting
torque).
3.Positive coupling for drive without slippage, no torque lost.
4.Instant engagement or separation, action flexible and rapid.
5.Integrated structure, both ends of teeth coaxial degree is high.
6.Low-speed integration, high-speed rotating.
7.Separate structure is also available.
