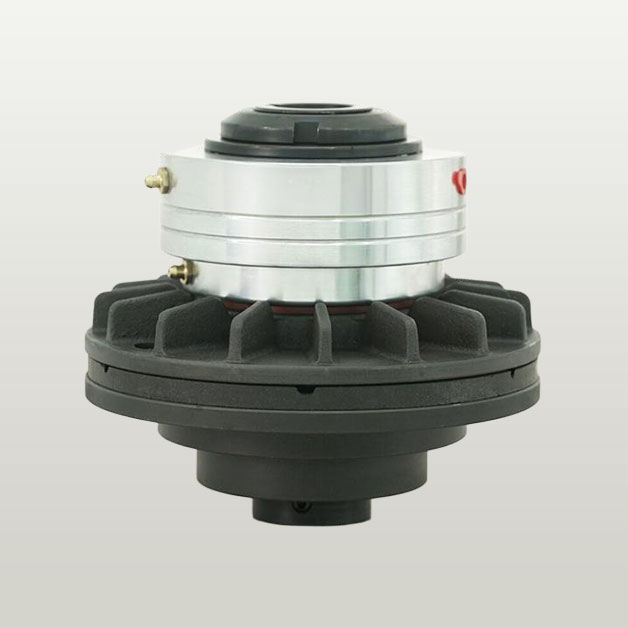

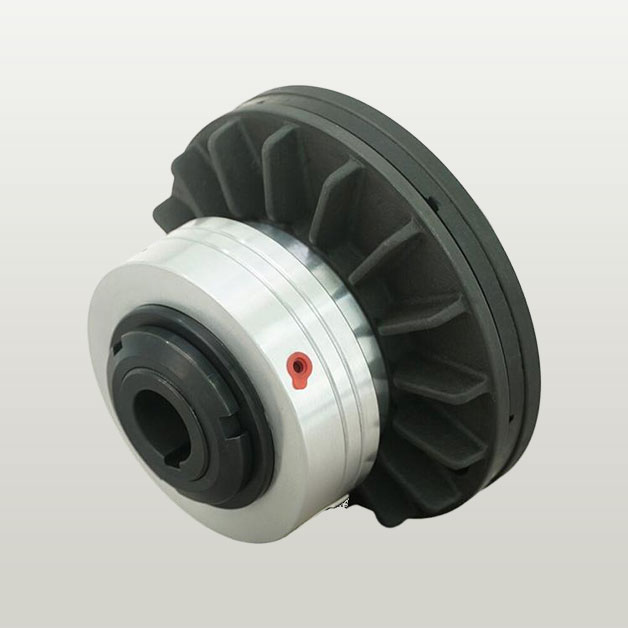

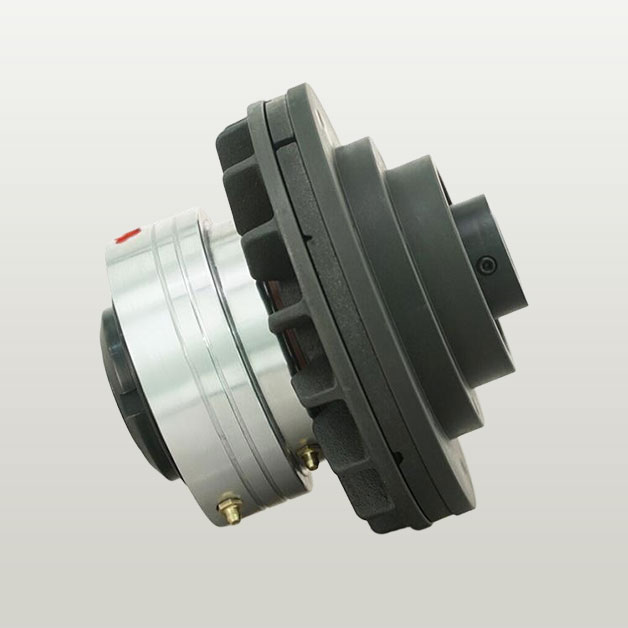

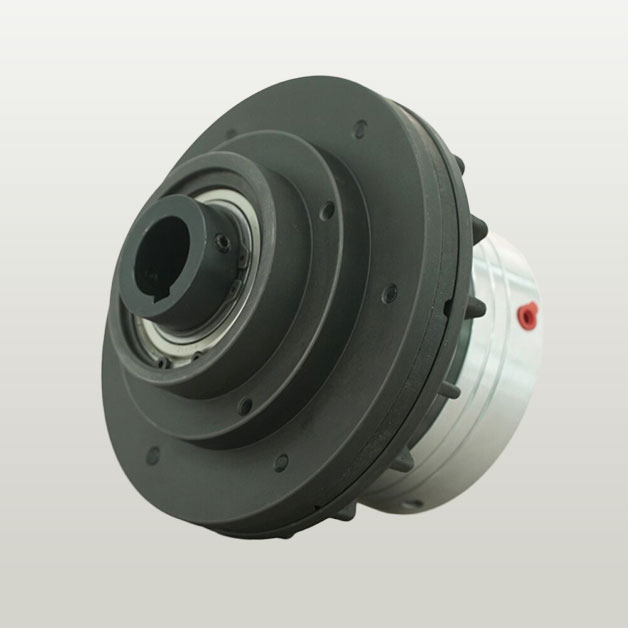

NAC model air clutch
This product can replace Nexen NAC modelpneumatic friction clutch very well.It is like a connector delivery motor power to driven load end for working.It is applied in winding machines for film materials, paper, plastic and other materials.
Still deciding? Get samples first, Contact US !
- Description
-
Product Description
Product Images And Product Chart

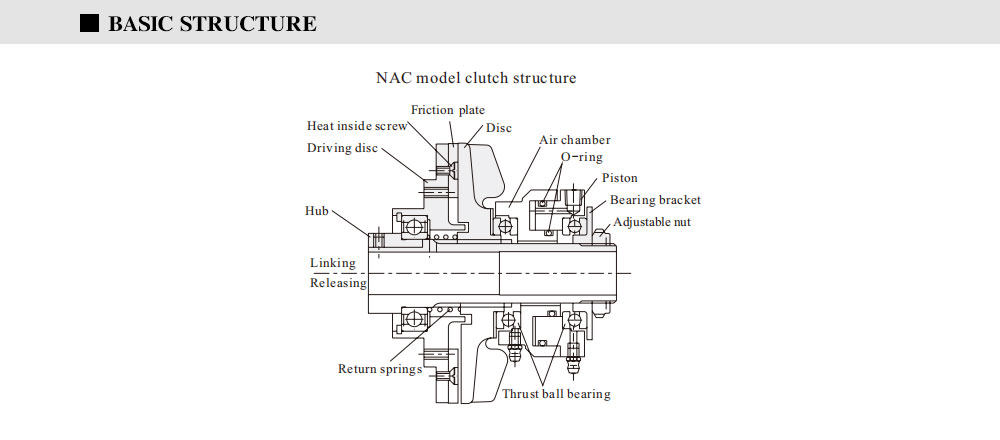

This clutch is linked with air pressure, released by return springs.
Disc relies on air pressure to slide along the direction of the axis,
contacting the friction plate. Disc, friction plate and so on, are assembling
to the wheel to come into an integrated structure. Disc and
friction plate are separated by return springs air pressure exhausted,
clutch released.
Friction plate can be parted by adjusting screwing nuts

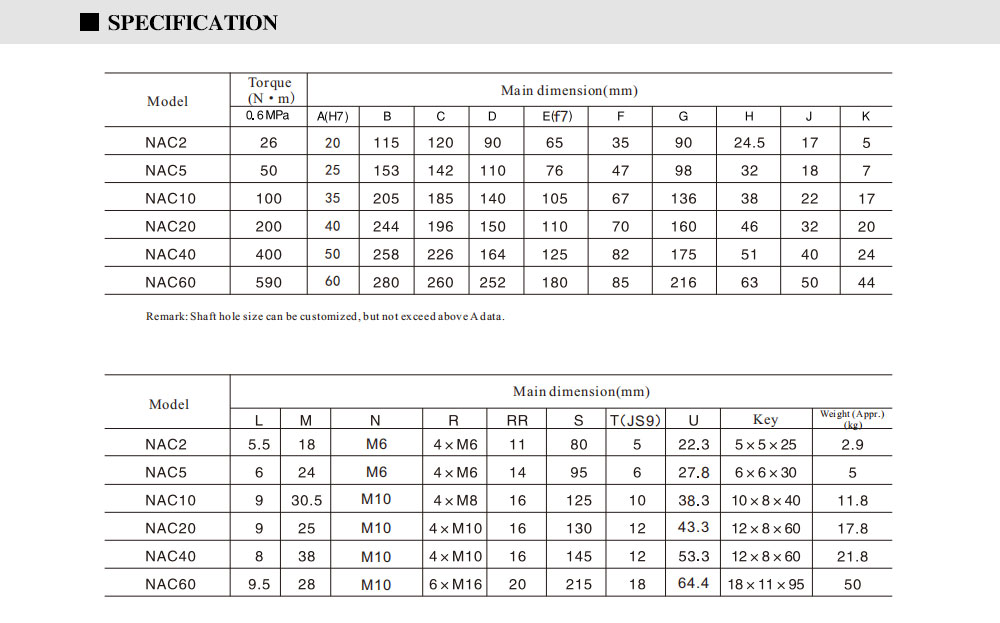

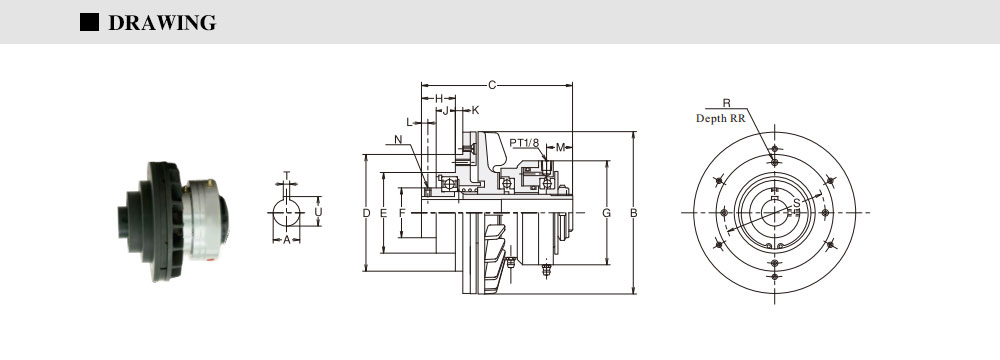

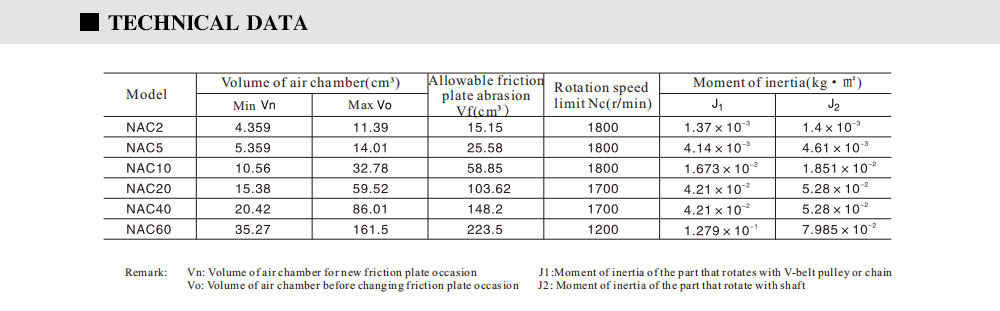

Specification
1. Torque adjustment range is wide

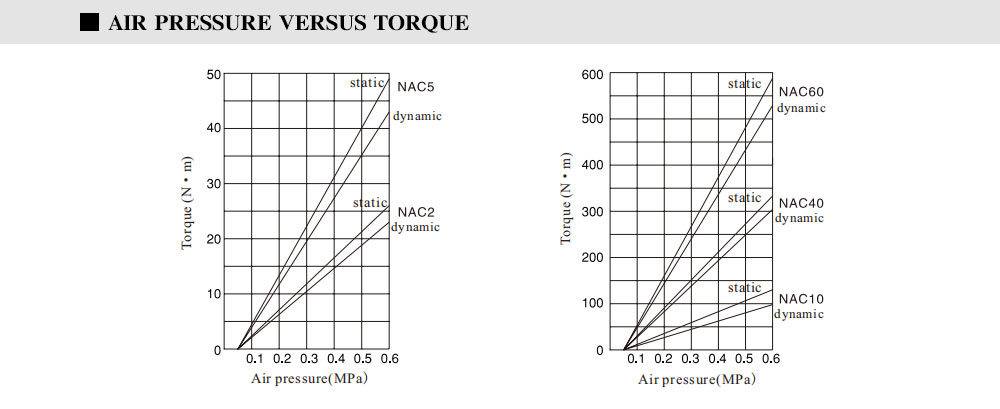

It can be adjust torque in wide range according to air pressure adjustment.
2. Safe and reliable
It will not produce electric spark.
3. Suitable for high-frequent, continuous sliding movement
It is durable in high frequency, high load and continuous sliding movement industry situation, also can be used as limiter.
4 . Small impact
After connecting, increase air pressure softly, to reach stable start and reduce impact for equipment.
5 .Long service life
Good heat dissipation and less abrasion.
6 . Compact structure
Belt can be connected with clutch for working, convenient for usage.
NAC model air clutch
This product can replace Nexen NAC modelpneumatic friction clutch very well.It is like a connector delivery motor power to driven load end for working.It is applied in winding machines for film materials, paper, plastic and other materials.
Still deciding? Get samples first, Contact US !
