HABB model air brake
Still deciding? Get samples first, Contact US !
- Description
-
Product Description

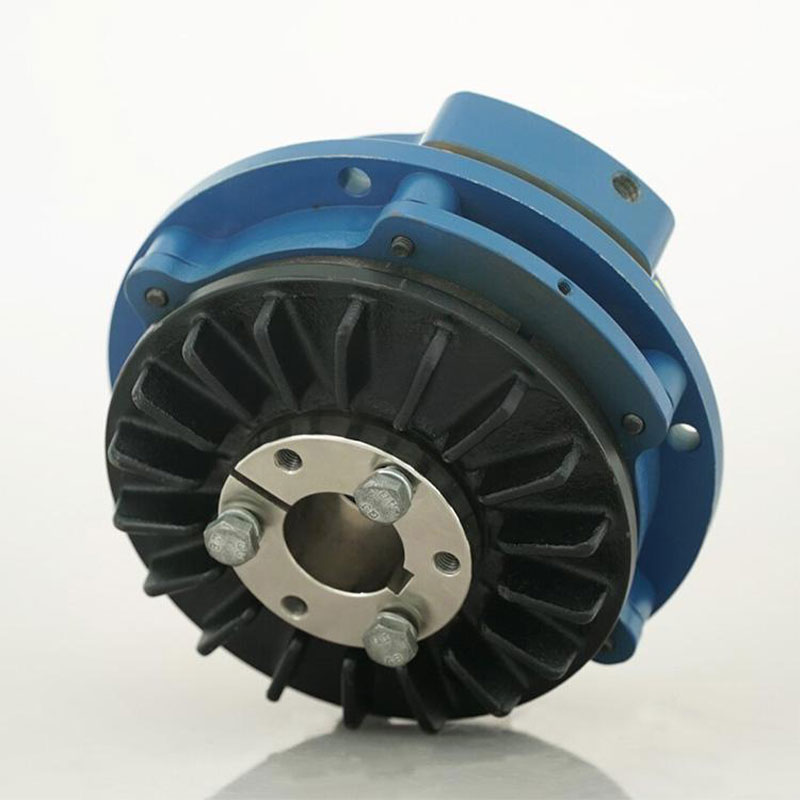

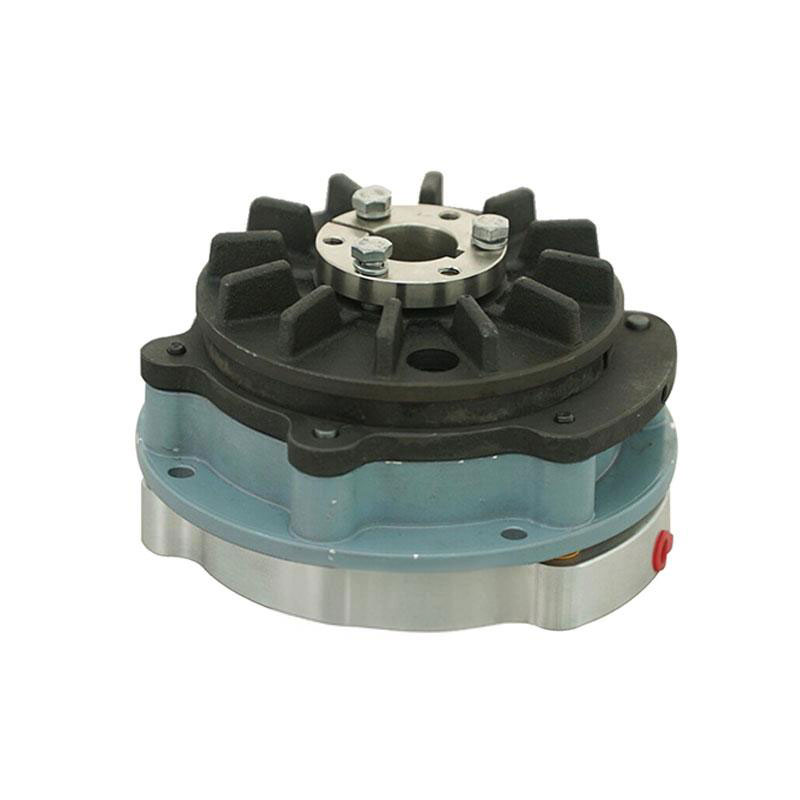

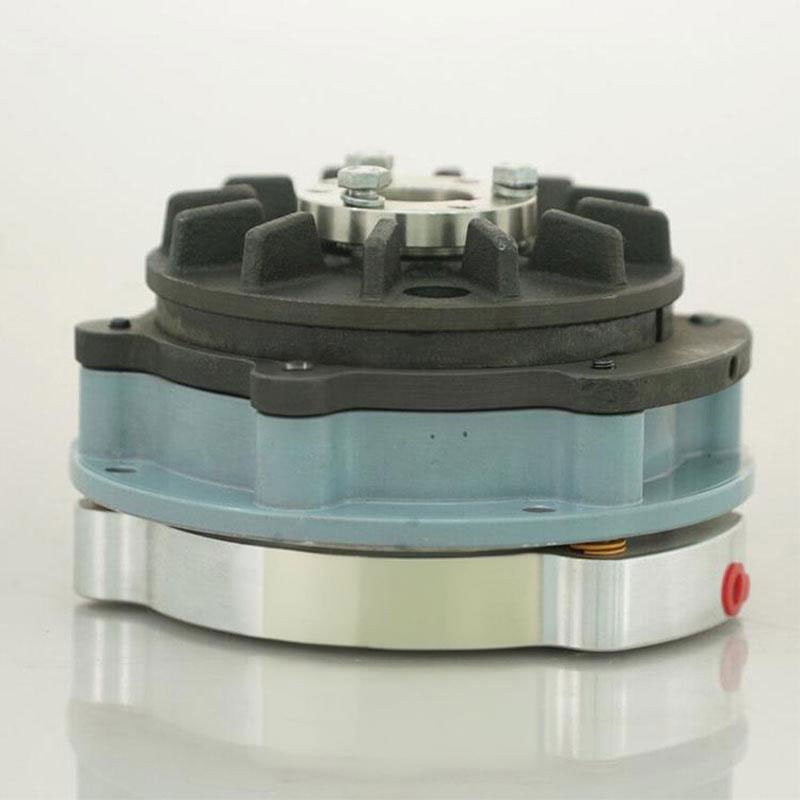

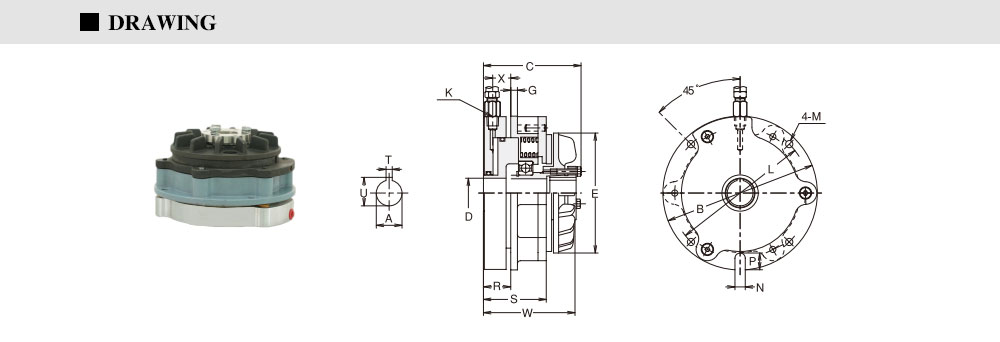

Product Images And Product Chart

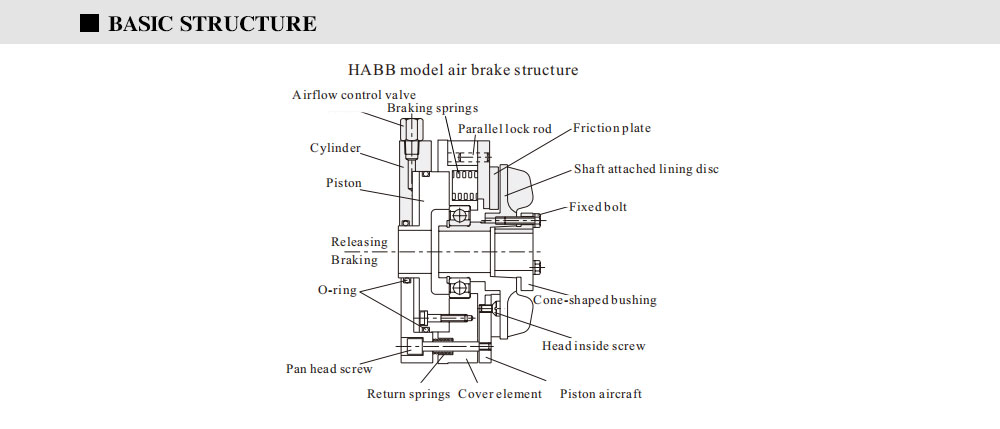

Normally, friction plate is compressed with shaft attached lining discby braking springs, brake braked. After supplying air pressure, pistonaircraft and friction plate moved back by cylinder, friction plate and
disc are separated, brake released. After exhausting air pressure, friction
plate and shaft attached lining disc compressed again by brakingsprings, brake braked.

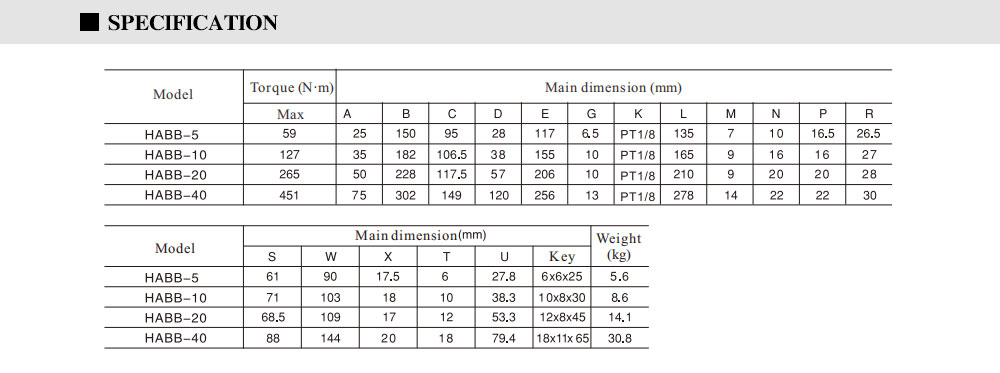

Specification
1.Normally if air supply is hold, the braking spring is activated and stops the operation. If air is supplied, spring is released. When power cut off or low air pressure, braking automatically.
2. Perfect heat dissipation
There is heat cooling plate on disc, perfect heat dissipation, to make sure brake can be used in badly working situation.
3. Two-cut style friction plate
Two-cut style friction plate, when replace, it works without changing anything of the mechanical equipment.
4. Easy structure and durable
Compact structure, reliable, little abrasion and long service life.
5.Suitable for the emergent stop and fail-safe control.
