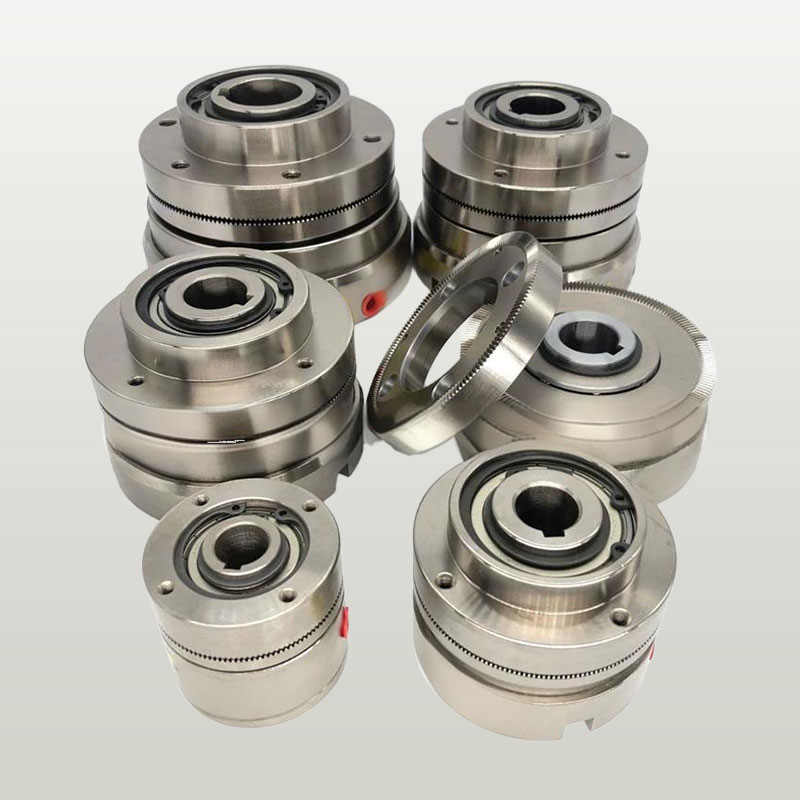

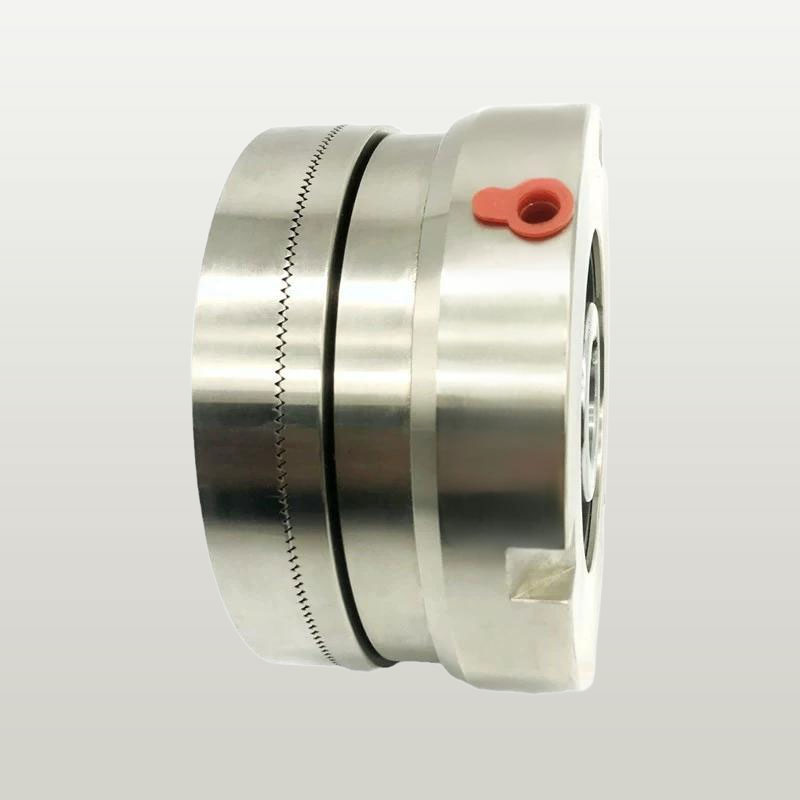

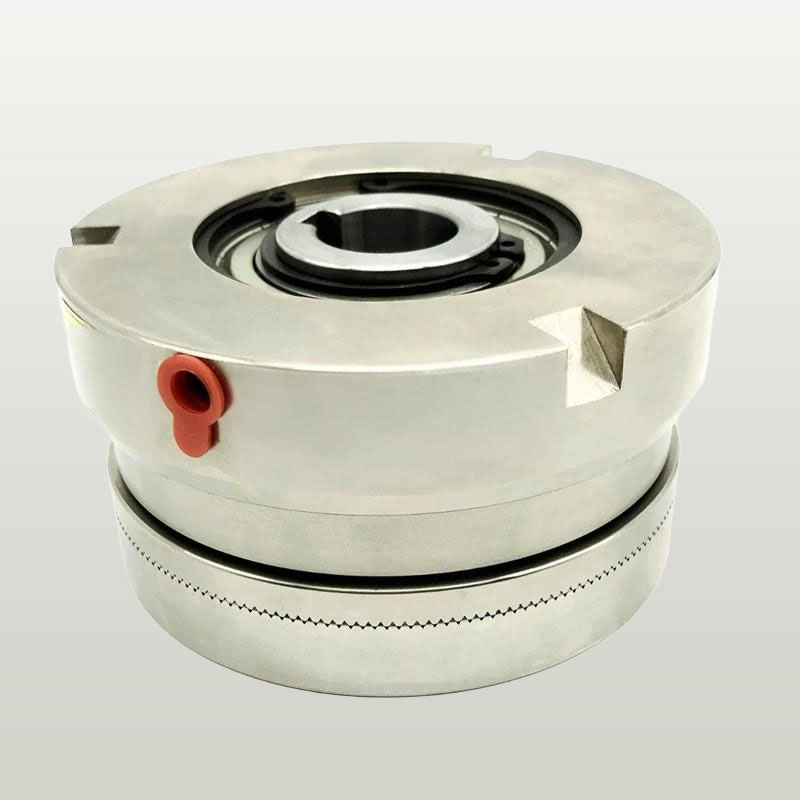

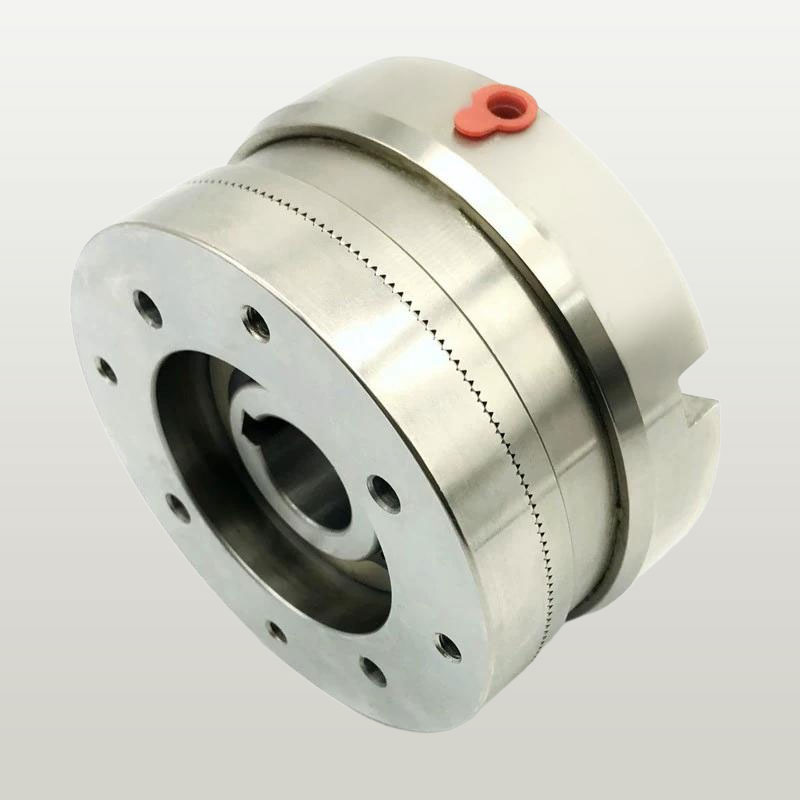

HTC model air clutch
This product is of a split-type construction. The spacing between the teeth can be freely adjusted, and after connection, it can rotate at high speed. It is suitable for special working conditions.
Still deciding? Get samples first, Contact US !
- Description
-
Product Description

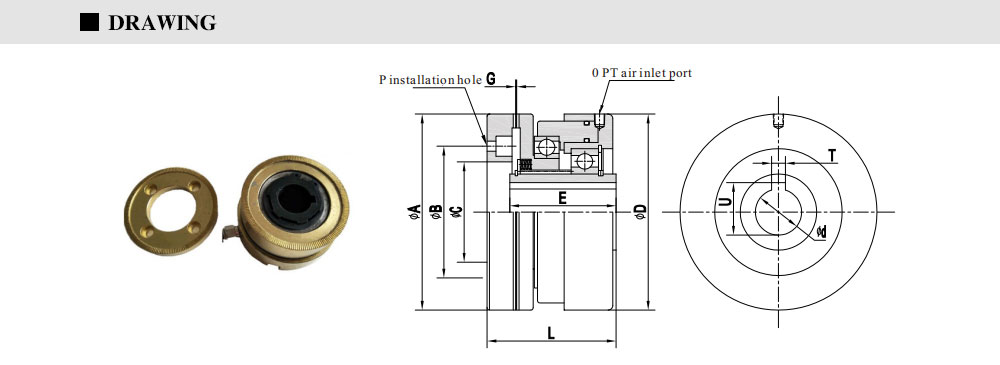

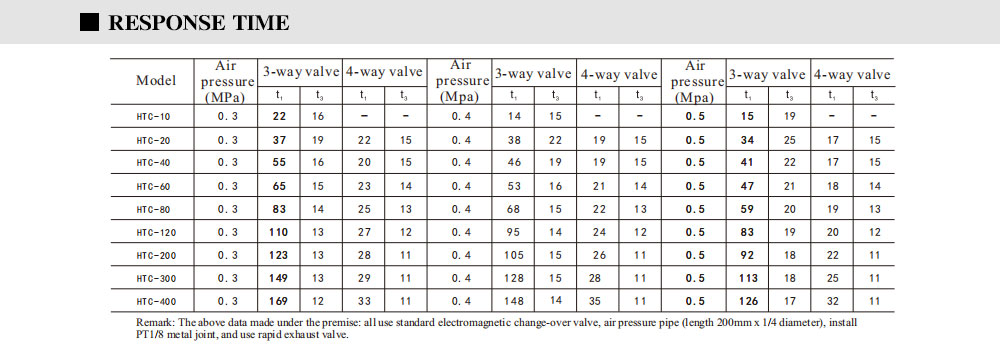

Product Images And Product Chart
This clutch is linked with air pressure, released by return springs. After
supplying air pressure, piston pushes driving tooth plate to slide along the
direction of the axis, driving tooth plate compressed driven tooth plate to
come into an integrated structure, clutch linked. Driving tooth plate and
driven tooth plate are separated by return springs after exhausting air pressure,
clutch released.

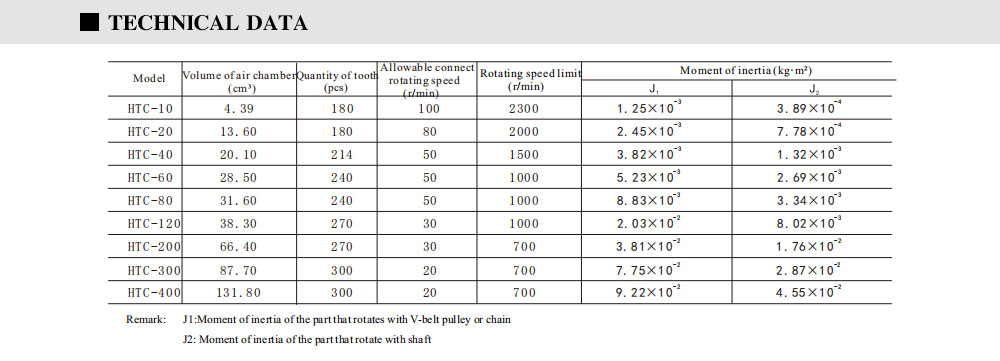

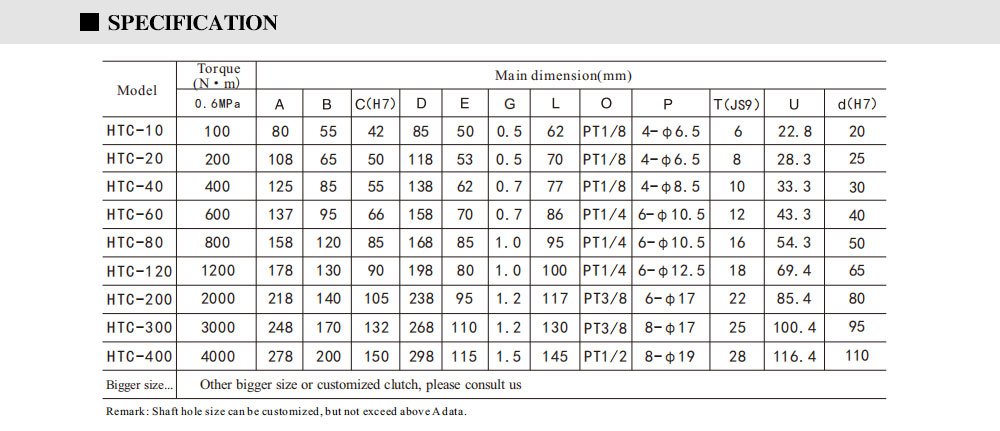

Specification
1.Suitable for narrow space, it can transmit high torque in compact size(both ends transmitting
torque is available).
2.No slippage, no torque lost.
3.Instant engagement or separation, action flexible and rapid.
4.Separate structure, tooth space is adjustable flexibly.
5.Low-speed integration, high-speed rotating.
6.Separate structure is adapt to different working situation
