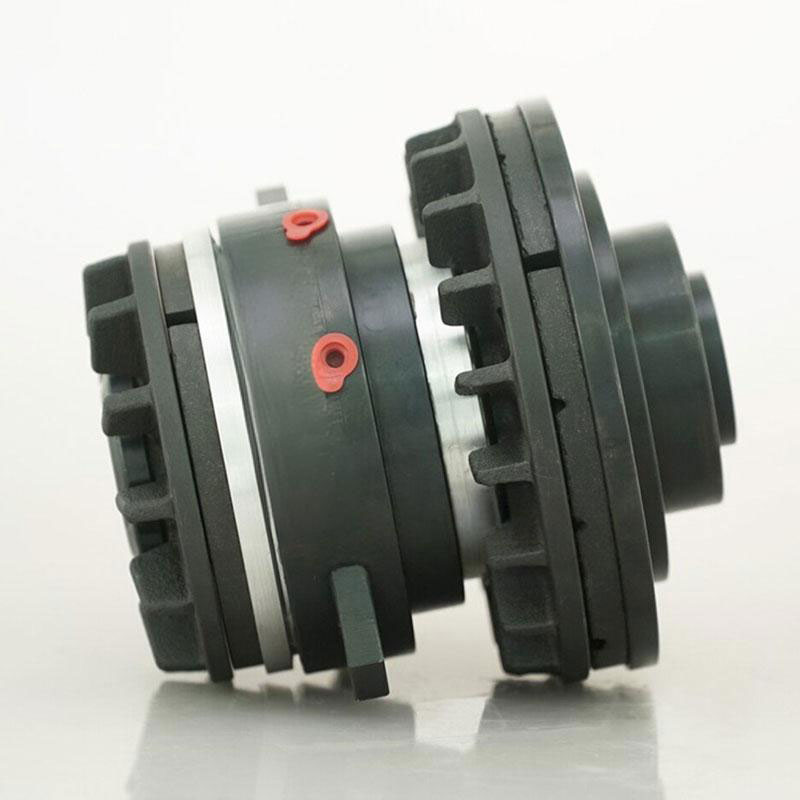

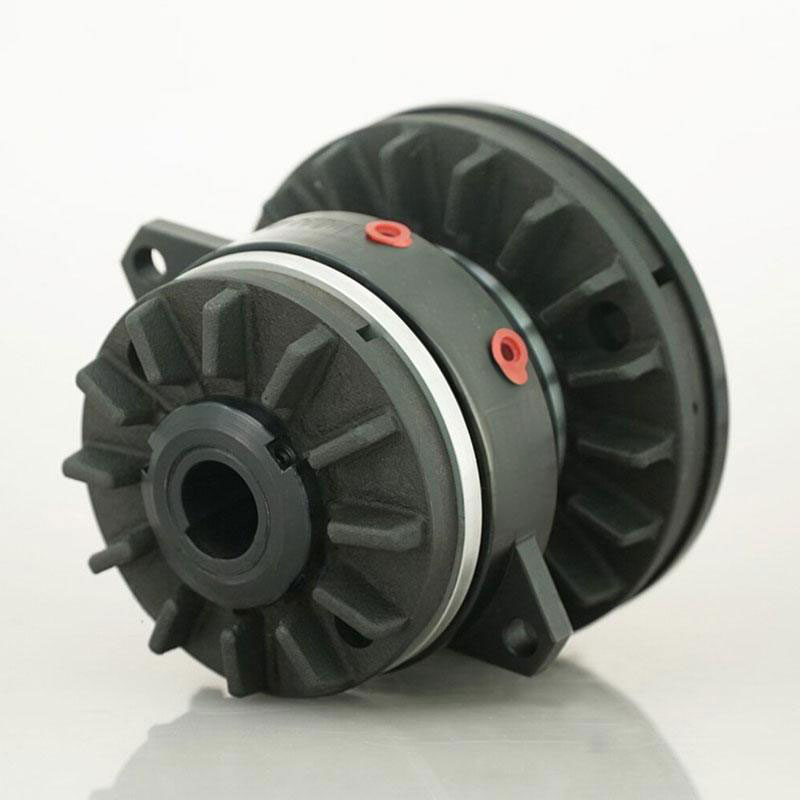

HACB model air clutch and brake unit
This product is a combined structure of a clutch and a brake.It can replace ASAHI DSDP, NIIKA combine clutch and brake group very well with competitive price.
Still deciding? Get samples first, Contact US !
View similar products
- Description
-
Product Description

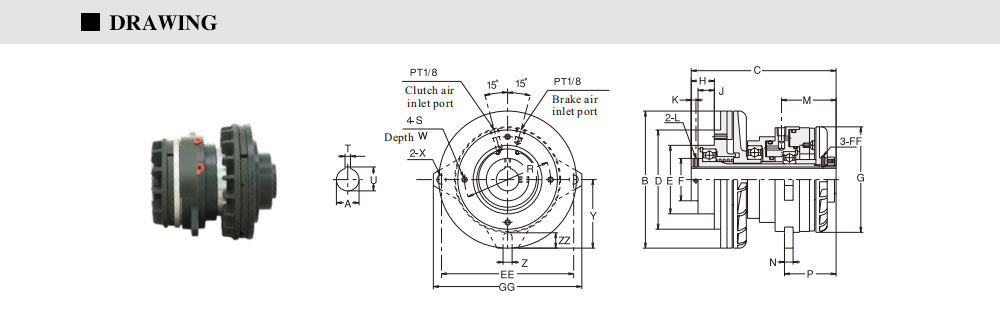

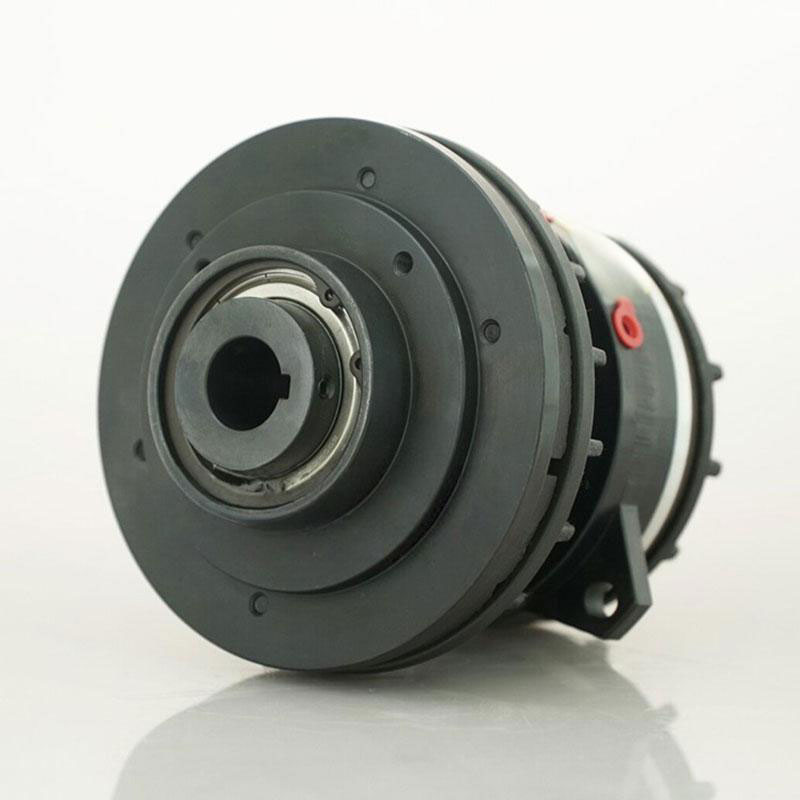

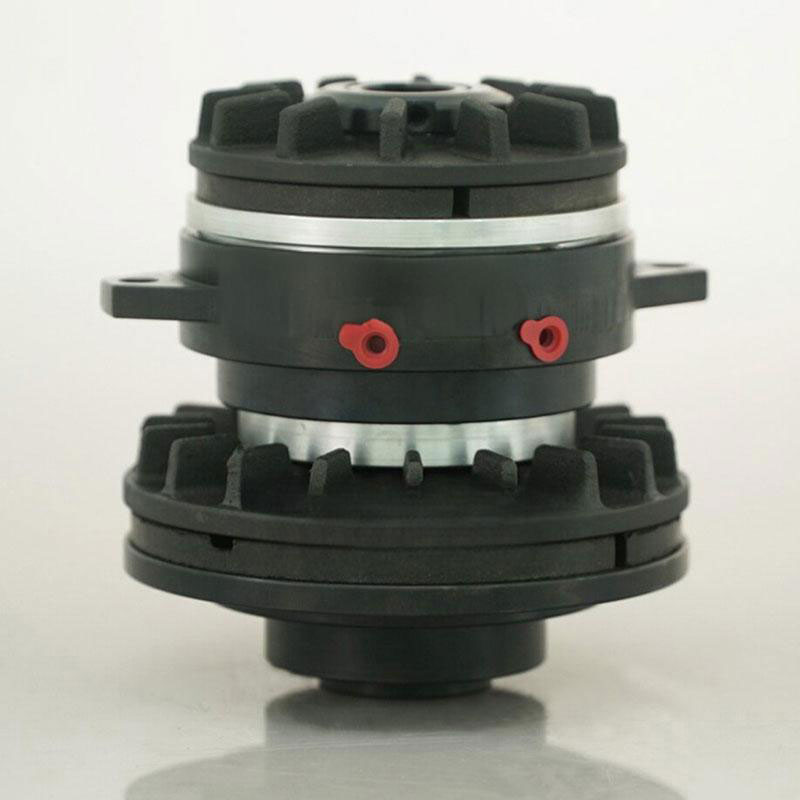

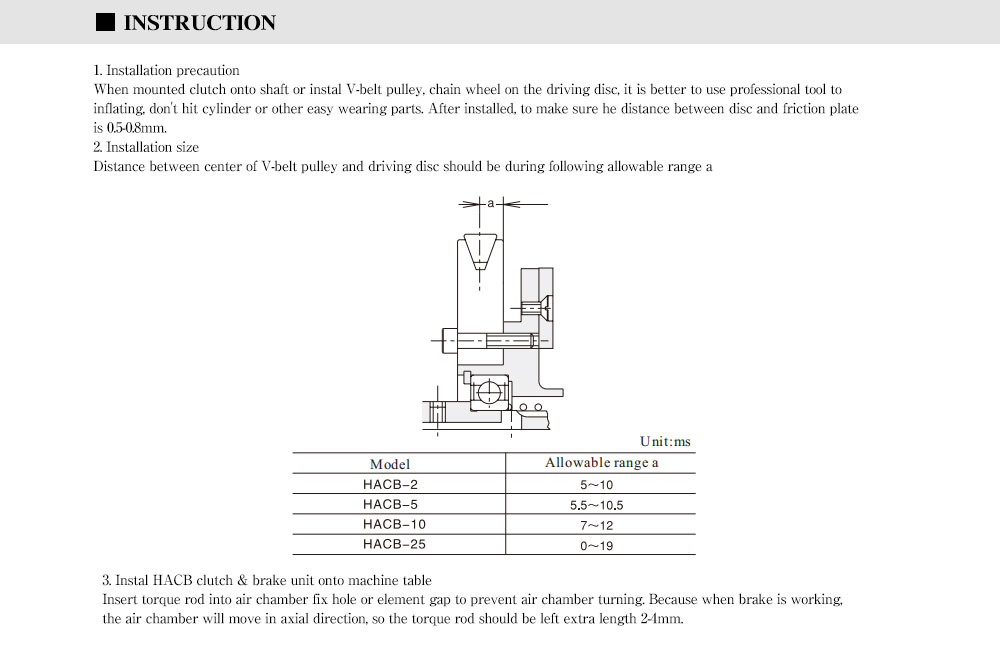

Product Images And Product Chart

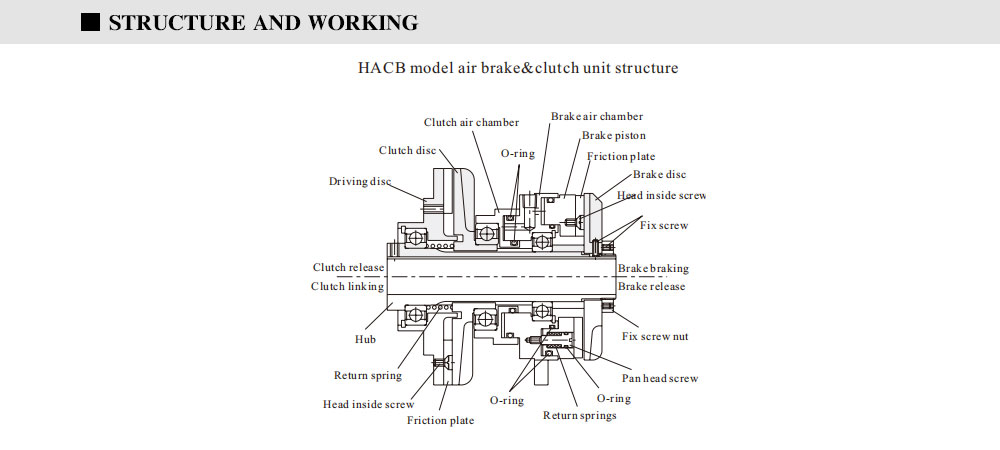

Brake and clutch are controlled independently, after exhausting air
pressure, released by return springs. Power input via driving disc, and
output via shaft. Flange and torque stop rod will prevent air chamber
from connecting rotation.
HACB has three kinds of working status:
1. Link status
Supply air pressure to clutch, clutch linked. Exhaust brake air supply,
brake released, power input via driving disc, and output via shaft.
2. Brake status
Supply air pressure to clutch and brake, clutch linked and brake braked, so as to brake load end or prevent load end from rotating.
3. Idle status
Exhaust clutch and brake air pressure, clutch and brake released, shaft
and load end run against resistance by inertia until stop.

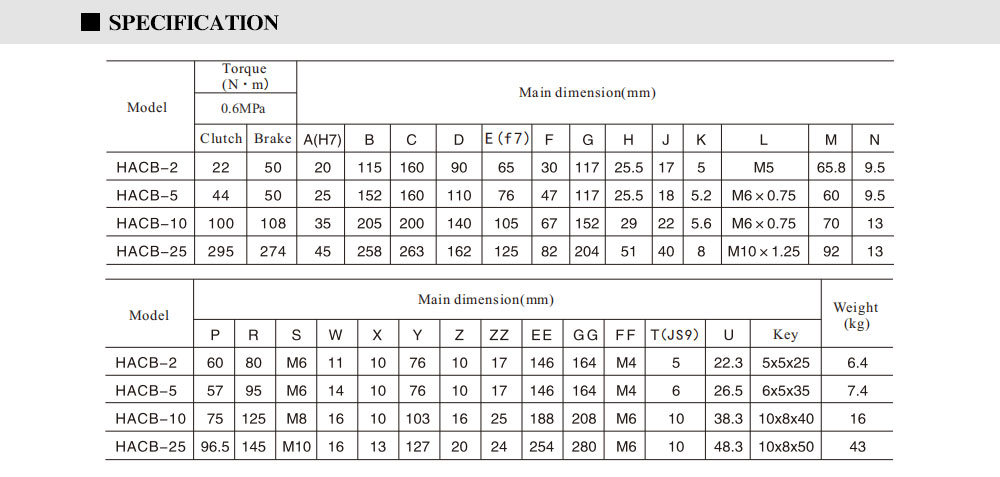

Specification
1.Combination structure
Brake and clutch combination structure, small size.
2.Good heat dissipation
Discs of brake and clutch both have cooling fin, it can dissipate brake or clutch occurs heat in time.3.Control flexible
Brake and clutch control independently, three kinds of working modes can be exchanged flexibly.
4.Installation space small
Brake and clutch combination structure, installation space is small.
